UPJ1V561MHD6TN
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 560UF 20% 35V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet UPJ1V561MHD6TN Datasheet
-
ECAD Model
- Share
In Stock: 150
Can ship immediately
Pricing:
- 1$1.14
- 250$0.5111
- 500$0.43807
- 750$0.40157
- 1,250$0.37724
- 2,500$0.3529
- 6,250$0.33464
- 12,500$0.31712
- 25,000$0.3103
Quote It
Technical Details
- Series:UPJ
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Capacitance:560 µF
- Tolerance:±20%
- Voltage - Rated:35 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.1 A @ 120 Hz
- Ripple Current @ High Frequency:1.36 A @ 10 kHz
- Impedance:75 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.630" Dia (16.00mm)
- Height - Seated (Max):0.650" (16.50mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
Related Products

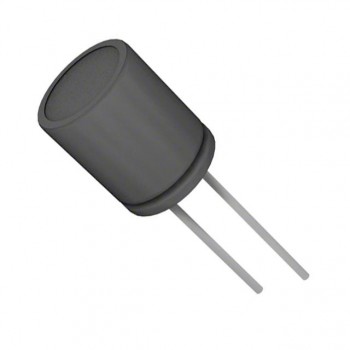

CAP 1000 UF 20% 16 V
