530218-5
TE Connectivity AMP Connectors- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN EDGE DUAL FMALE 34POS 0.100
- CategoryCard Edge Connectors - Edgeboard Connectors
- Datasheet 530218-5 Datasheet
-
ECAD Model
- Share
In Stock: 114
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:TWIN LEAF
- Package:Tray
- Part Status:Obsolete
- Card Type:Non Specified - Dual Edge
- Gender:Female
- Number of Positions/Bay/Row:17
- Number of Positions:34
- Card Thickness:0.055" ~ 0.070" (1.40mm ~ 1.78mm)
- Number of Rows:2
- Pitch:0.100" (2.54mm)
- Read Out:Dual
- Features:-
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Contact Finish Thickness:15.0µin (0.38µm)
- Contact Type:-
- Color:Black
- Flange Feature:-
- Operating Temperature:-55°C ~ 105°C

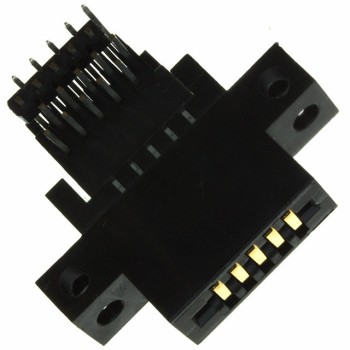

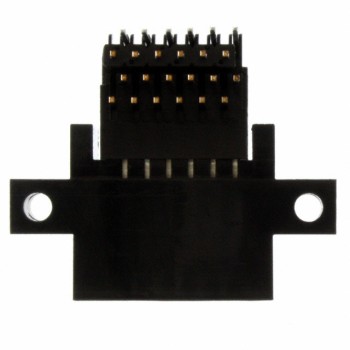

Related Products
