RC2010JK-07560RL
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 560 OHM 5% 3/4W 2010
- CategoryChip Resistor - Surface Mount
- Datasheet RC2010JK-07560RL Datasheet
-
ECAD Model
- Share
In Stock: 569
Can ship immediately
Pricing:
- 1$0.22
- 4,000$0.02639
Quote It
Technical Details
- Series:RC_L
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:560 Ohms
- Tolerance:±5%
- Power (Watts):0.75W, 3/4W
- Composition:Thick Film
- Features:Moisture Resistant
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:2010 (5025 Metric)
- Supplier Device Package:2010
- Ratings:-
- Size / Dimension:0.197" L x 0.098" W (5.00mm x 2.50mm)
- Height - Seated (Max):0.026" (0.65mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES SMD 3.01K OHM 0.5% 1/4W 1206
RT1206DRE073K01L Datasheet- 1: $0.23000
- 5000: $0.02835
- 10000: $0.02646
RES SMD 93.1 OHM 0.5% 1/16W 0402
RT0402DRD0793R1L Datasheet- 1: $0.27000
- 10000: $0.03059
- 30000: $0.03017

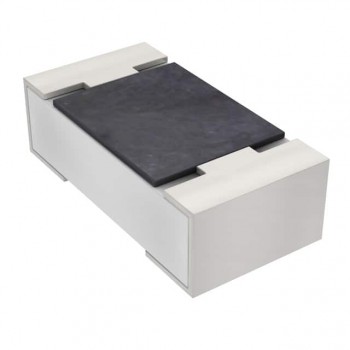

RES SMD 71.5 OHM 0.5% 1/16W 0402
