- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLG HSG FMALE 23POS INLINE
- CategoryCircular Connectors - Housings
- Datasheet HD36-24-23SN Datasheet
-
ECAD Model
- Share
In Stock: 279
Can ship immediately
Pricing:
- 1$18.87
- 10$17.5182
- 25$15.72113
- 50$15.27187
- 100$13.47518
- 250$12.57683
- 500$12.30733
Quote It
Technical Details
- Series:HD30
- Package:Bulk
- Part Status:Active
- Connector Type:Plug Housing
- Type:For Female Sockets
- Number of Positions:23
- Shell Size - Insert:24-23
- Shell Size, MIL:-
- Contact Type:Crimp
- Contact Size:16
- Mounting Type:Free Hanging (In-Line)
- Mounting Feature:-
- Fastening Type:Bayonet Lock
- Orientation:Keyed
- Shell Material:Aluminum
- Shell Finish:-
- Housing Color:Silver
- Ingress Protection:IP67 - Dust Tight, Waterproof
- Material Flammability Rating:-
- Features:Coupling Nut
- Shielding:Unshielded
Related Products
CONN PLUG HSG FMALE 21POS INLINE
- 1: $19.09000
- 10: $17.72643
- 25: $15.90886

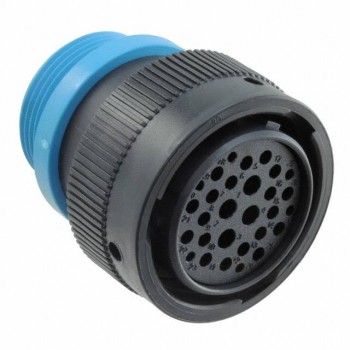

CONN PLUG HSG FMALE 29POS INLINE
HDP26-24-29SE-L015 Datasheet- 1: $19.11000
- 10: $17.74641
- 25: $15.92592
CONN RCPT HSNG MALE 16POS PNL MT
HDP24-24-16PE-L017 Datasheet- 1: $19.82000
- 10: $18.40805
- 25: $16.51942
CONN RCPT HSNG MALE 19POS PNL MT
HDP24-24-19PN-L017 Datasheet- 1: $19.87000
- 10: $18.06883
- 25: $17.61711

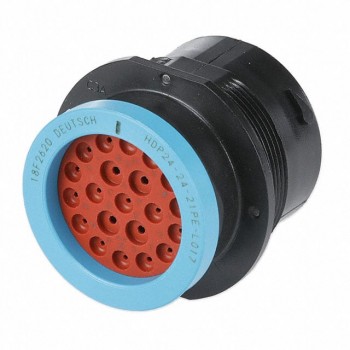

CONN RCPT HSG MALE 21POS PNL MNT
