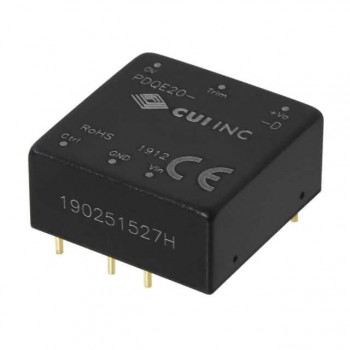

PDQE20-Q24-D24-D

CUI Inc.
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionDC DC CONVERTER +/-24V 20W
  • CategoryDC DC Converters
  • ECAD Model
  • Share
In Stock: 273

Can ship immediately

Pricing:
  • 1$24.16

Quote It

Technical Details

  • Series:PDQE20-D (20W)
  • Package:Tube
  • Part Status:Active
  • Type:Isolated Module
  • Number of Outputs:2
  • Voltage - Input (Min):9V
  • Voltage - Input (Max):36V
  • Voltage - Output 1:24V
  • Voltage - Output 2:-24V
  • Voltage - Output 3:-
  • Voltage - Output 4:-
  • Current - Output (Max):417mA, 417mA
  • Power (Watts):20 W



  • Voltage - Isolation:1.5 kV
  • Applications:ITE (Commercial)
  • Features:Remote On/Off, OCP, OVP, SCP
  • Operating Temperature:-40°C ~ 105°C (With Derating)
  • Efficiency:89%
  • Mounting Type:Through Hole
  • Package / Case:6-DIP Module
  • Size / Dimension:1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
  • Supplier Device Package:-
  • Control Features:-
  • Approval Agency:EN
  • Standard Number:55024; 55032 Class A

Related Products


PDQE20-Q48-D5-D

DC DC CONVERTER +/-5V 20W

  • 1: $24.16000

PDQE20-Q48-D15-D

DC DC CONVERTER +/-15V 20W

  • 1: $24.16000

PDQE20-Q24-D12-D

DC DC CONVERTER +/-12V 20W

  • 1: $24.16000

PDQE20-Q48-D24-D

DC DC CONVERTER +/-24V 20W

  • 1: $24.16000

PDQE20-Q24-D5-D

DC DC CONVERTER +/-5V 20W

  • 1: $24.16000

PDQE20-Q24-D15-D

DC DC CONVERTER +/-15V 20W

  • 1: $24.16000

PT5827C

SWITCHING REGLTR, VOLTAGE-MODE

  • 1: $24.19000

PT5804C

SWITCHING REGLTR, VOLTAGE-MODE

  • 1: $24.19000

PT5803C

SWITCHING REGLTR, VOLTAGE-MODE

  • 1: $24.19000

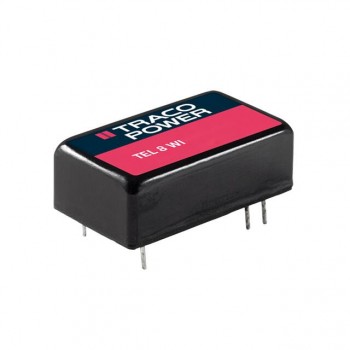

TEL 8-4815WI
