PDM1-S15-D24-S
CUI Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDC DC CONVERTER +/-24V 1W
- CategoryDC DC Converters
- Datasheet PDM1-S15-D24-S Datasheet
-
ECAD Model
- Share
In Stock: 106
Can ship immediately
Pricing:
- 1$4.04
- 5$3.984
- 12$3.92667
- 36$3.81139
- 60$3.696
- 108$3.58046
- 252$3.465
- 504$3.23401
Quote It
Technical Details
- Series:PDM1-S (1W)
- Package:Tube
- Part Status:Active
- Type:Isolated Module
- Number of Outputs:2
- Voltage - Input (Min):13.5V
- Voltage - Input (Max):16.5V
- Voltage - Output 1:24V
- Voltage - Output 2:-24V
- Voltage - Output 3:-
- Voltage - Output 4:-
- Current - Output (Max):21mA, 21mA
- Power (Watts):1 W
- Voltage - Isolation:1.5 kV
- Applications:ITE (Commercial)
- Features:SCP
- Operating Temperature:-40°C ~ 105°C
- Efficiency:80%
- Mounting Type:Through Hole
- Package / Case:6-SIP Module, 5 Leads
- Size / Dimension:0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm)
- Supplier Device Package:-
- Control Features:-
- Approval Agency:-
- Standard Number:-
Related Products

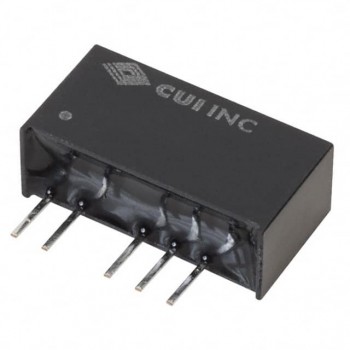

DC DC CONVERTER +/-9V 1W
