AM1DS-1212DH52Z

DComponents
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionDC DC CONVERTER 12V -12V 1W
  • CategoryDC DC Converters
  • ECAD Model
  • Share
In Stock: 159

Can ship immediately

Pricing:
  • 1$8.55

Quote It

Technical Details

  • Series:AM1DS-Z (1W)
  • Package:Tube
  • Part Status:Active
  • Type:Isolated Module
  • Number of Outputs:2
  • Voltage - Input (Min):10.8V
  • Voltage - Input (Max):13.2V
  • Voltage - Output 1:12V
  • Voltage - Output 2:-12V
  • Voltage - Output 3:-
  • Voltage - Output 4:-
  • Current - Output (Max):41.67mA, 41.67mA
  • Power (Watts):1 W



  • Voltage - Isolation:5.2 kV
  • Applications:ITE (Commercial)
  • Features:-
  • Operating Temperature:-40°C ~ 85°C
  • Efficiency:76%
  • Mounting Type:Through Hole
  • Package / Case:7-SIP Module, 5 Leads
  • Size / Dimension:0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
  • Supplier Device Package:-
  • Control Features:-
  • Approval Agency:-
  • Standard Number:-

Related Products


AM1DS-1212SH52Z

DC DC CONVERTER 12V 1W

  • 1: $8.55000

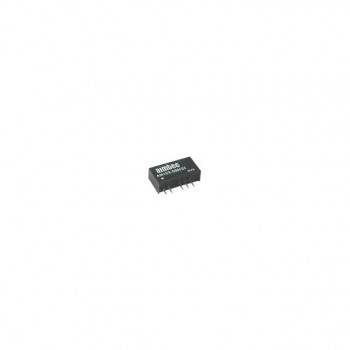

AM1DS-1215SH52Z

DC DC CONVERTER 15V 1W

  • 1: $8.55000

AM1DS-1215DH52Z

DC DC CONVERTER +/-15V 1W

  • 1: $8.55000

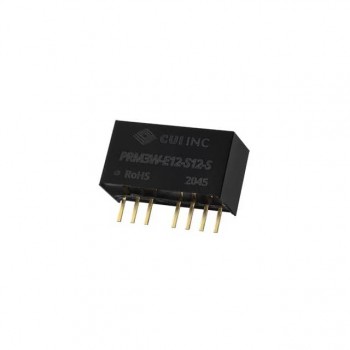

PRM3W-E12-S15-S

DC-DC ISOLATED, 3 W, 4.5~36 VDC

  • 1: $8.56000

R1D12-2405/HP-R

DC DC CONVERTER +/-5V 1W

R1D12-2405/HP-R Datasheet
  • 1: $8.56278
  • 500: $8.56278

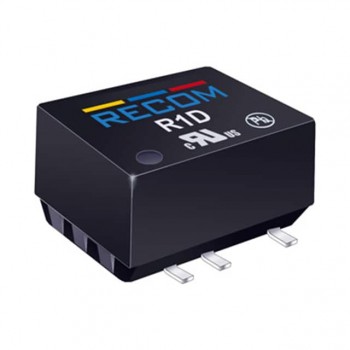

R1D12-2409/HP-R
