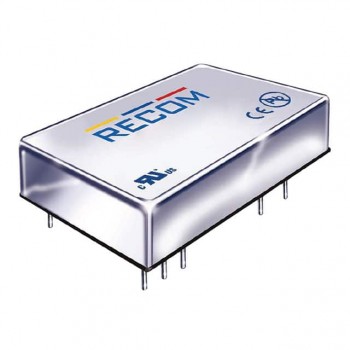

RP08-4812DAW/SMD
RECOM Power
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDC DC CONVERTER +/-12V 8W
- CategoryDC DC Converters
- Datasheet RP08-4812DAW/SMD Datasheet
-
ECAD Model
- Share
In Stock: 166
Can ship immediately
Pricing:
- 1$51.69286
- 7$51.69286
Quote It
Technical Details
- Series:POWERLINE RP08-W (8W)
- Package:Tube
- Part Status:Active
- Type:Isolated Module
- Number of Outputs:2
- Voltage - Input (Min):18V
- Voltage - Input (Max):75V
- Voltage - Output 1:12V
- Voltage - Output 2:-12V
- Voltage - Output 3:-
- Voltage - Output 4:-
- Current - Output (Max):333mA, 333mA
- Power (Watts):8 W
- Voltage - Isolation:1.6 kV
- Applications:ITE (Commercial), Railway
- Features:Remote On/Off, OCP, OVP, SCP
- Operating Temperature:-40°C ~ 85°C
- Efficiency:87%
- Mounting Type:Surface Mount
- Package / Case:24-SMD Module, 18 Leads
- Size / Dimension:1.26" L x 0.80" W x 0.44" H (32.0mm x 20.3mm x 11.2mm)
- Supplier Device Package:-
- Control Features:Enable, Active High
- Approval Agency:-
- Standard Number:-
