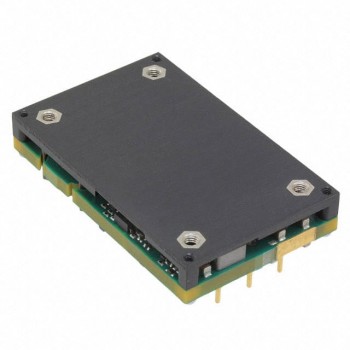

DVQ0135V2PSC

Technical Details

• Series:DBQ (420W)
• Package:Tray
• Part Status:Active
• Type:Intermediate Bus Converter
• Number of Outputs:1
• Voltage - Input (Min):36V
• Voltage - Input (Max):75V
• Voltage - Output 1:12V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):35A
• Power (Watts):420 W

• Voltage - Isolation:2.25 kV
• Applications:ITE (Commercial)
• Features:Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature:-40°C ~ 85°C
• Efficiency:92.5%
• Mounting Type:Through Hole
• Package / Case:16-DIP Module (15 Leads), 1/4 Brick
• Size / Dimension:2.30" L x 1.45" W x 0.48" H (58.4mm x 36.8mm x 12.2mm)
• Supplier Device Package:-
• Control Features:Enable, Active High
• Approval Agency:-
• Standard Number:-
