5102322-3
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 16POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 5102322-3 Datasheet
-
ECAD Model
- Share
In Stock: 378
Can ship immediately
Pricing:
- 1$4.02
- 56$3.43645
- 112$3.29015
- 504$2.8515
- 1,008$2.55904
Quote It
Technical Details
- Series:AMP-Latch
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:16
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Latch Lock/Eject Hooks, Long
- Contact Length - Mating:0.240" (6.10mm)
- Contact Length - Post:0.155" (3.94mm)
- Overall Contact Length:-
- Insulation Height:0.315" (8.00mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold or Gold-Palladium
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:-
- Features:Keying Slot, Mounting Flange
- Operating Temperature:-65°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1A per Contact
- Voltage Rating:250VAC
Related Products

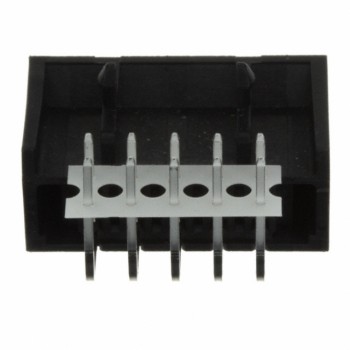

CONN HEADER R/A 10POS 3MM
