HNC2-2.5P-4DS(55)

Hirose
In Stock: 1,254

Can ship immediately

Pricing:
  • 1$0.42
  • 10$0.39
  • 25$0.3512
  • 50$0.312
  • 100$0.299
  • 250$0.273
  • 500$0.26
  • 1,000$0.2145
  • 2,500$0.195

Quote It

Technical Details

  • Series:HNC
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.197" (5.00mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.433" (11.00mm)
  • Insulation Height:0.256" (6.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:39.4µin (1.00µm)
  • Contact Finish - Post:-
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-55°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:250V

Related Products


1775470-3

CONN HEADER SMD 3POS 2MM

1775470-3 Datasheet
  • 1: $0.60000
  • 500: $0.46242
  • 1000: $0.41667

1734709-3

CONN HEADER SMD R/A 3POS 1MM

1734709-3 Datasheet
  • 1: $0.80000
  • 1500: $0.41214
  • 3000: $0.39840

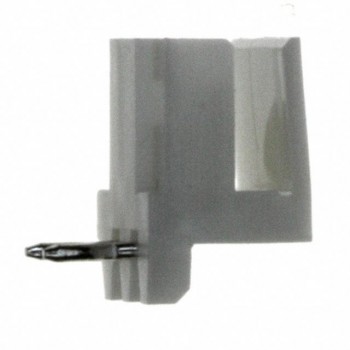

292250-2

CONN HEADER R/A 2POS 2MM

292250-2 Datasheet
  • 1: $0.43000
  • 10: $0.41112
  • 100: $0.28747

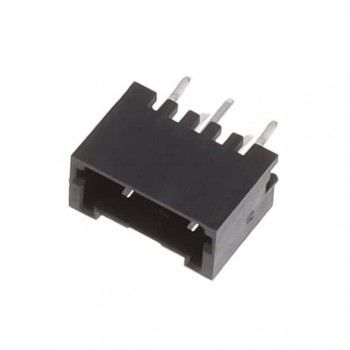

2-292207-5

CONN HEADER VERT 5POS 1.5MM

  • 1: $0.44000
  • 10: $0.41900
  • 25: $0.36200

0022284056

CONN HEADER VERT 5POS 2.54MM

  • 1: $0.43000

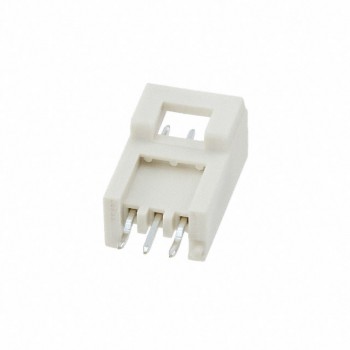

0554870319

CONN HEADER VERT 3POS 2MM

0554870319 Datasheet
  • 1: $0.44000
  • 10: $0.41851
  • 100: $0.29327

68015-102HLF

CONN HEADER R/A 2POS 2.54MM

68015-102HLF Datasheet
  • 1: $0.43000
  • 10: $0.40645
  • 100: $0.29138

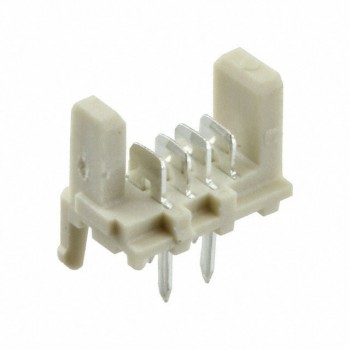

0907790001

CONN HEADER VERT 4POS 1.27MM

0907790001 Datasheet
  • 1: $0.43000
  • 10: $0.40244
  • 100: $0.28148

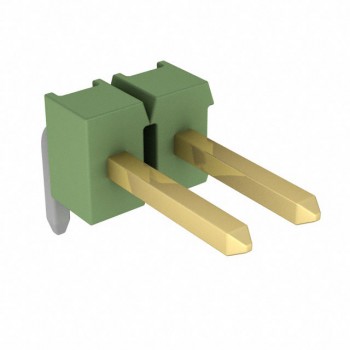

826631-2
