M22-2030505

Harwin
In Stock: 2,016

Can ship immediately

Pricing:
  • 1$0.43
  • 10$0.40378
  • 100$0.28265
  • 500$0.24227
  • 1,000$0.20189
  • 5,000$0.17305
  • 10,000$0.16151

Quote It

Technical Details

  • Series:M22
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Cuttable
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:5
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.138" (3.50mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.079" (2.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:-
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA6T), Nylon 6T
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:-

Related Products


68015-105HLF

CONN HEADER R/A 5POS 2.54MM

68015-105HLF Datasheet
  • 1: $0.43000
  • 10: $0.40543
  • 100: $0.29035

10127721-041LF

CONN HEADER VERT 4POS 3MM

10127721-041LF Datasheet
  • 1: $0.44000
  • 10: $0.41546
  • 100: $0.32433

SWR25X-NRTC-S08-RB-BA

CONN HEADER R/A 8POS 2.54MM

SWR25X-NRTC-S08-RB-BA Datasheet
  • 1: $0.43000
  • 10: $0.40300
  • 100: $0.28220

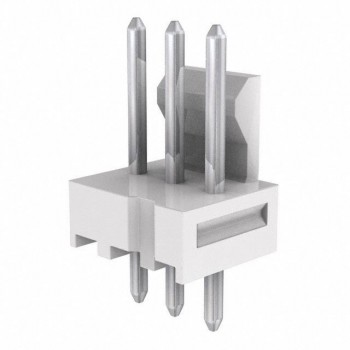

0022232033

CONN HEADER VERT 3POS 2.54MM

0022232033 Datasheet
  • 1: $0.43000
  • 10: $0.40400
  • 100: $0.28270

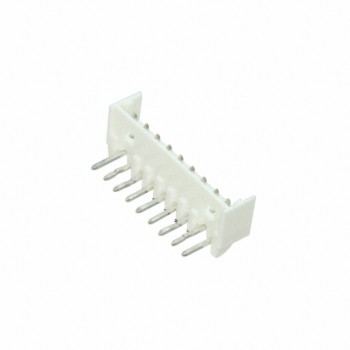

0532540970
