In Stock: 7,512

Can ship immediately

Pricing:
  • 1$0.44
  • 10$0.41647
  • 100$0.29848
  • 500$0.25913
  • 1,000$0.21969
  • 5,000$0.19152
  • 10,000$0.18026

Quote It

Technical Details

  • Series:BERGSTIK® II
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.538" (13.67mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:-
  • Contact Material:Phosphor Bronze
  • Insulation Material:-
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


77313-818-06LF

CONN HEADER VERT 6POS 2.54MM

77313-818-06LF Datasheet
  • 1: $0.44000
  • 10: $0.41660
  • 100: $0.29152

PM20C06VBNN

CONN HEADER SMD 6POS 2MM

PM20C06VBNN Datasheet
  • 1: $0.44000
  • 10: $0.42000
  • 100: $0.29400

5-1775444-8

CONN HEADER SMD R/A 8POS 1.5MM

5-1775444-8 Datasheet
  • 1: $0.78000
  • 1000: $0.42662
  • 2000: $0.39996

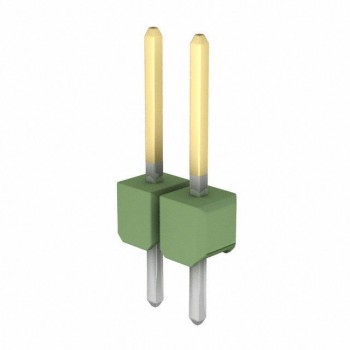

826630-2

CONN HEADER VERT 2POS 2.54MM

826630-2 Datasheet
  • 1: $0.45000
  • 10: $0.42341
  • 100: $0.32461

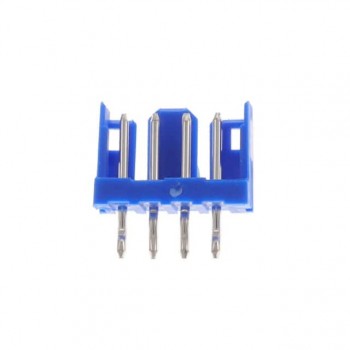

2-292161-4

CONN HEADER VERT 4POS 2MM

2-292161-4 Datasheet
  • 1: $0.45000
  • 10: $0.42279
  • 100: $0.32452

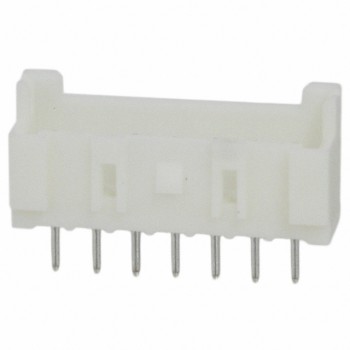

2132415-7

CONN HEADER VERT 7POS 2.5MM

2132415-7 Datasheet
  • 1: $0.45000
  • 10: $0.42593
  • 100: $0.32693

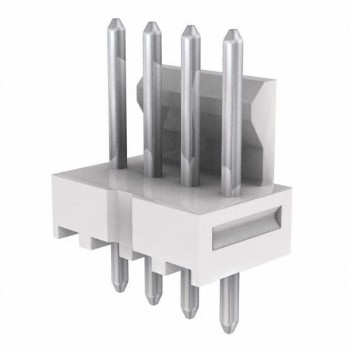

0050290053

CONN HEADER VERT 4POS 2.54MM

0050290053 Datasheet
  • 1: $0.45000
  • 10: $0.42600
  • 100: $0.32680

DF1-6P-2.5DSA(05)

CONN HEADER VERT 6POS 2.5MM

DF1-6P-2.5DSA(05) Datasheet
  • 1: $0.45000
  • 10: $0.41727
  • 100: $0.31991

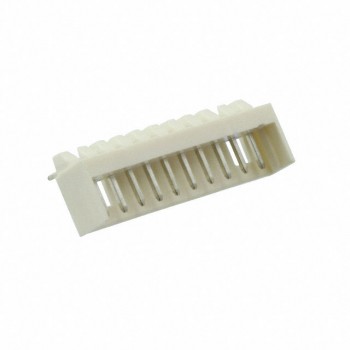

0532541070

CONN HEADER R/A 10POS 2MM

0532541070 Datasheet
  • 1: $0.45000
  • 10: $0.42384
  • 100: $0.32515

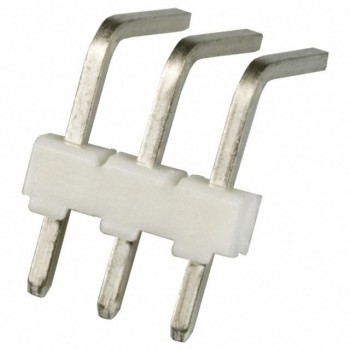

3-644457-3
