In Stock: 2,317

Can ship immediately

Pricing:
  • 1$0.46
  • 10$0.4359
  • 100$0.33427
  • 500$0.29068
  • 2,295$0.23254
  • 6,885$0.21075
  • 11,475$0.19621

Quote It

Technical Details

  • Series:Minitek127® 1.27mm
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:6
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.120" (3.05mm)



  • Contact Length - Post:0.106" (2.69mm)
  • Overall Contact Length:-
  • Insulation Height:0.135" (3.43mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


640387-3

CONN HEADER R/A 3POS 3.96MM

640387-3 Datasheet
  • 1: $0.46000
  • 10: $0.42770
  • 100: $0.33463

0022045053

CONN HEADER VERT 5POS 2.54MM

0022045053 Datasheet
  • 1: $0.46000
  • 10: $0.43300
  • 100: $0.30330

M20-9991246

CONN HEADER VERT 12POS 2.54MM

M20-9991246 Datasheet
  • 1: $0.46000
  • 10: $0.43177
  • 100: $0.30224

640383-4

CONN HEADER VERT 4POS 3.96MM

640383-4 Datasheet
  • 1: $0.46000
  • 10: $0.44467
  • 100: $0.31842

640388-9

CONN HEADER VERT 9POS 3.96MM

640388-9 Datasheet
  • 1: $0.46000
  • 10: $0.42996
  • 100: $0.33542

M22-2040205

CONN HEADER R/A 4POS 2MM

M22-2040205 Datasheet
  • 1: $0.46000
  • 10: $0.43860
  • 100: $0.30670

M20-8890445R

CONN HEADER SMD R/A 4POS 2.54MM

M20-8890445R Datasheet
  • 1: $0.46400
  • 500: $0.44000
  • 1000: $0.36300

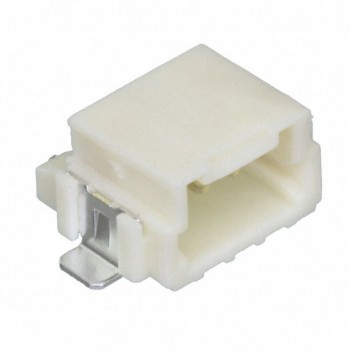

292228-3

CONN HEADER SMD R/A 3POS 1.5MM

292228-3 Datasheet
  • 1: $0.74000
  • 700: $0.50387
  • 1400: $0.45349

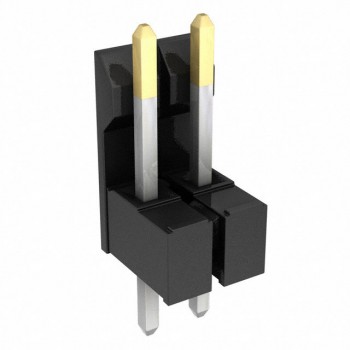

0022280021
