0022045053

Woodhead - Molex
In Stock: 2,139

Can ship immediately

Pricing:
  • 1$0.46
  • 10$0.433
  • 100$0.3033
  • 500$0.25998
  • 1,000$0.21665
  • 5,000$0.1857
  • 10,000$0.17332

Quote It

Technical Details

  • Series:KK254, 6373
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:5
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:4
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.295" (7.49mm)



  • Contact Length - Post:0.140" (3.56mm)
  • Overall Contact Length:0.560" (14.22mm)
  • Insulation Height:0.322" (8.18mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:White
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


M20-9991246

CONN HEADER VERT 12POS 2.54MM

M20-9991246 Datasheet
  • 1: $0.46000
  • 10: $0.43177
  • 100: $0.30224

640383-4

CONN HEADER VERT 4POS 3.96MM

640383-4 Datasheet
  • 1: $0.46000
  • 10: $0.44467
  • 100: $0.31842

640388-9

CONN HEADER VERT 9POS 3.96MM

640388-9 Datasheet
  • 1: $0.46000
  • 10: $0.42996
  • 100: $0.33542

M22-2040205

CONN HEADER R/A 4POS 2MM

M22-2040205 Datasheet
  • 1: $0.46000
  • 10: $0.43860
  • 100: $0.30670

M20-8890445R

CONN HEADER SMD R/A 4POS 2.54MM

M20-8890445R Datasheet
  • 1: $0.46400
  • 500: $0.44000
  • 1000: $0.36300

292228-3

CONN HEADER SMD R/A 3POS 1.5MM

292228-3 Datasheet
  • 1: $0.74000
  • 700: $0.50387
  • 1400: $0.45349

0022280021

CONN HEADER VERT 2POS 2.54MM

0022280021 Datasheet
  • 1: $0.47000
  • 10: $0.44400
  • 100: $0.31090

0022280060

CONN HEADER VERT 6POS 2.54MM

0022280060 Datasheet
  • 1: $0.47000
  • 10: $0.44100
  • 100: $0.33830

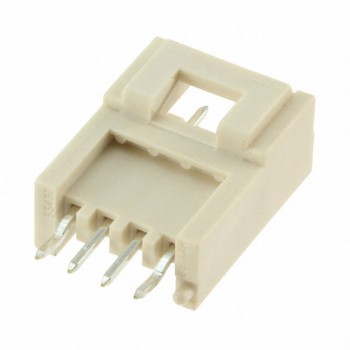

0554870419
