In Stock: 11,882

Can ship immediately

Pricing:
  • 1$0.65
  • 10$0.57331
  • 100$0.50021
  • 500$0.41682
  • 1,000$0.37512
  • 5,000$0.33344
  • 10,000$0.31886

Quote It

Technical Details

  • Series:MTA-100
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:14
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:-
  • Contact Length - Mating:0.295" (7.49mm)



  • Contact Length - Post:0.140" (3.56mm)
  • Overall Contact Length:-
  • Insulation Height:0.225" (5.72mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC

Related Products


0010081042

CONN HEADER VERT 4POS 5.08MM

0010081042 Datasheet
  • 1: $0.65000
  • 10: $0.60700
  • 100: $0.46510

292207-9

CONN HEADER VERT 9POS 1.5MM

292207-9 Datasheet
  • 1: $0.65000
  • 10: $0.61455
  • 100: $0.48011

292250-6

CONN HEADER R/A 6POS 2MM

292250-6 Datasheet
  • 1: $0.65000
  • 10: $0.61331
  • 100: $0.47031

1586077-1

CONN HEADER VERT 3POS 6.35MM

1586077-1 Datasheet
  • 1: $0.65000
  • 10: $0.61100
  • 100: $0.46870

0026644060

CONN HEADER VERT 6POS 3.96MM

0026644060 Datasheet
  • 1: $0.65000
  • 10: $0.61100
  • 100: $0.46810

1734829-4

CONN HEADER R/A 4POS 1.25MM

1734829-4 Datasheet
  • 1: $0.66000
  • 90: $0.49294
  • 180: $0.47237

292172-3

CONN HEADER SMD 3POS 2MM

292172-3 Datasheet
  • 1: $0.66000
  • 60: $0.49264
  • 120: $0.47209

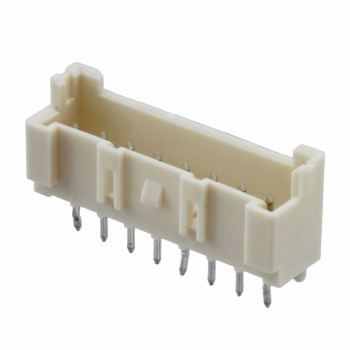

1744418-8

CONN HEADER VERT 8POS 2.5MM

1744418-8 Datasheet
  • 1: $0.66000
  • 10: $0.62454
  • 25: $0.56583

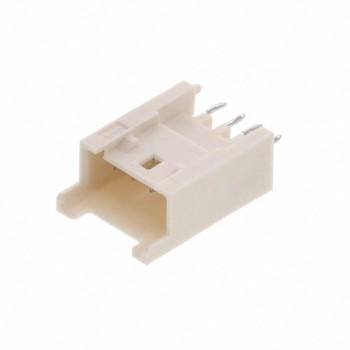

0535170430

CONN HEADER VERT 4POS 2.5MM

  • 1: $0.67000
  • 96: $0.50281
  • 192: $0.48193

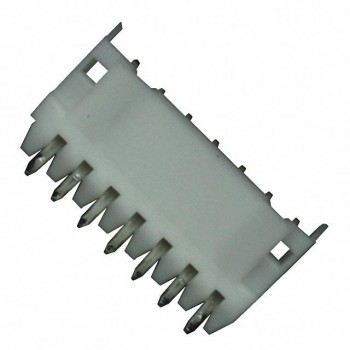

292253-7
