In Stock: 2,331

Can ship immediately

Pricing:
  • 1$0.84
  • 10$0.7872
  • 100$0.60324
  • 500$0.52454
  • 1,000$0.43274
  • 5,000$0.38029
  • 10,000$0.35407

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.264" (6.70mm)



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:0.500" (12.70mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Green
  • Current Rating (Amps):5A
  • Voltage Rating:-

Related Products


DF1EG-7P-2.5DSA(35)

CONN HEADER VERT 7POS 2.5MM

DF1EG-7P-2.5DSA(35) Datasheet
  • 1: $0.84000
  • 10: $0.74044
  • 100: $0.63881

77313-824-20LF

CONN HEADER VERT 20POS 2.54MM

77313-824-20LF Datasheet
  • 1: $0.84000
  • 10: $0.73527
  • 100: $0.63458

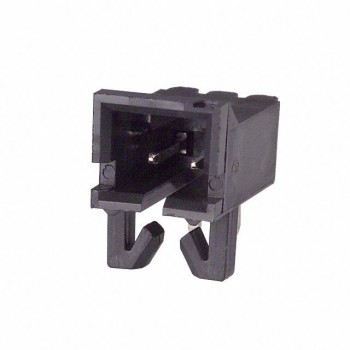

5-103672-1

CONN HEADER R/A 2POS 2.54MM

5-103672-1 Datasheet
  • 1: $0.85000
  • 70: $0.67317
  • 140: $0.64387

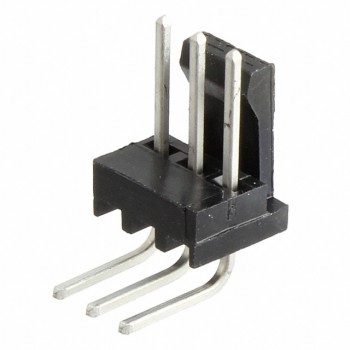

3-647630-3

CONN HEADER R/A 3POS 2.54MM

3-647630-3 Datasheet
  • 1: $0.85000
  • 10: $0.75641
  • 100: $0.65982

BHR-10-VUA-ML

CONN HEADER VERT 10POS 2.54MM

  • 1: $0.85000
  • 10: $0.74300
  • 260: $0.58300

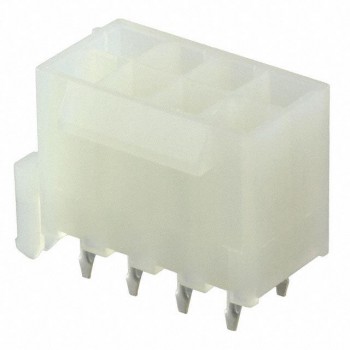

0442060005

CONN HEADER VERT 8POS 4.2MM

0442060005 Datasheet
  • 1: $0.86000
  • 10: $0.75680
  • 25: $0.71228

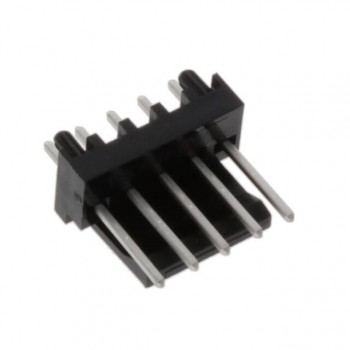

3-647609-5

CONN HEADER VERT 5POS 2.54MM

3-647609-5 Datasheet
  • 1: $0.85000
  • 10: $0.75316
  • 100: $0.65762

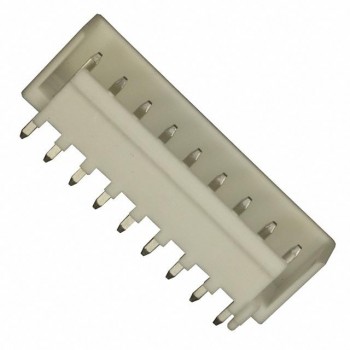

1877285-9

CONN HEADER VERT 9POS 3.96MM

1877285-9 Datasheet
  • 1: $0.85000
  • 10: $0.74926
  • 100: $0.64610

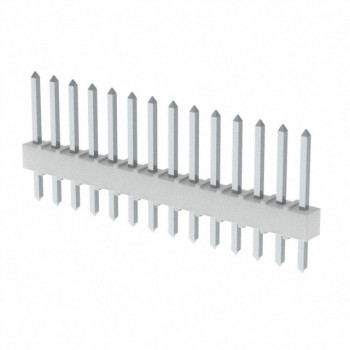

0022032141

CONN HEADER VERT 14POS 2.54MM

0022032141 Datasheet
  • 1: $0.85000
  • 10: $0.74500
  • 100: $0.64310

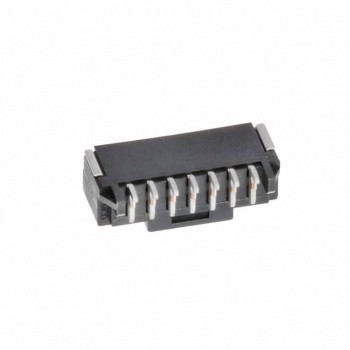

5023520701
