0442060005

Woodhead - Molex
In Stock: 1,959

Can ship immediately

Pricing:
  • 1$0.86
  • 10$0.7568
  • 25$0.71228
  • 50$0.68274
  • 100$0.65309
  • 250$0.5937
  • 500$0.53433
  • 1,000$0.47496
  • 2,500$0.43044

Quote It

Technical Details

  • Series:Mini-Fit Jr 44206
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.504" (12.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:35.4µin (0.90µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:Board Lock
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-2
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


3-647609-5

CONN HEADER VERT 5POS 2.54MM

3-647609-5 Datasheet
  • 1: $0.85000
  • 10: $0.75316
  • 100: $0.65762

1877285-9

CONN HEADER VERT 9POS 3.96MM

1877285-9 Datasheet
  • 1: $0.85000
  • 10: $0.74926
  • 100: $0.64610

0022032141

CONN HEADER VERT 14POS 2.54MM

0022032141 Datasheet
  • 1: $0.85000
  • 10: $0.74500
  • 100: $0.64310

5023520701

CONN HEADER SMD R/A 7POS 2MM

5023520701 Datasheet
  • 1: $1.24000
  • 700: $0.85820
  • 1400: $0.77238

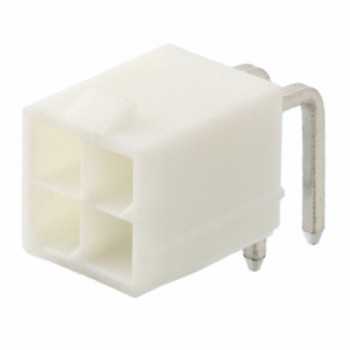

1586042-4

CONN HEADER R/A 4POS 4.2MM

1586042-4 Datasheet
  • 1: $0.86000
  • 10: $0.76100
  • 400: $0.60875

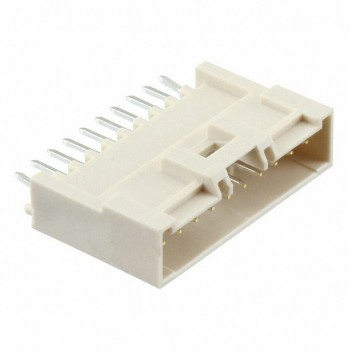

0554871019

CONN HEADER VERT 10POS 2MM

0554871019 Datasheet
  • 1: $0.87000
  • 10: $0.76277
  • 450: $0.59835

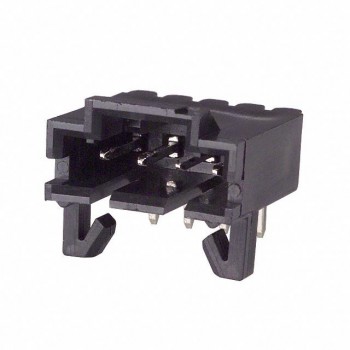

5-103672-3

CONN HEADER R/A 4POS 2.54MM

5-103672-3 Datasheet
  • 1: $0.86000
  • 42: $0.71369
  • 126: $0.65425

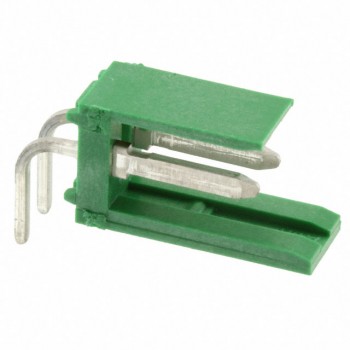

280615-1

CONN HEADER R/A 2POS 3.96MM

280615-1 Datasheet
  • 1: $0.86000
  • 10: $0.76077
  • 100: $0.65614

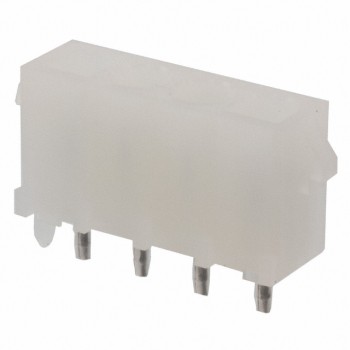

0432550129

CONN HEADER VERT 4POS 6.35MM

0432550129 Datasheet
  • 1: $0.87000
  • 10: $0.76783
  • 100: $0.66282

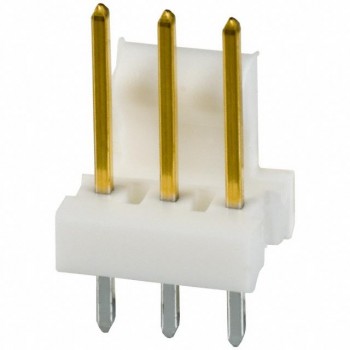

3-641213-3
