0554871019

Woodhead - Molex
In Stock: 7,711

Can ship immediately

Pricing:
  • 1$0.87
  • 10$0.76277
  • 450$0.59835
  • 900$0.52354
  • 1,350$0.47867
  • 5,400$0.41883
  • 10,350$0.39789

Quote It

Technical Details

  • Series:MicroTPA 55487
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Latch Lock
  • Contact Length - Mating:0.144" (3.66mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:0.604" (15.35mm)
  • Insulation Height:0.520" (13.20mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
  • Features:Board Guide
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:White
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


5-103672-3

CONN HEADER R/A 4POS 2.54MM

5-103672-3 Datasheet
  • 1: $0.86000
  • 42: $0.71369
  • 126: $0.65425

280615-1

CONN HEADER R/A 2POS 3.96MM

280615-1 Datasheet
  • 1: $0.86000
  • 10: $0.76077
  • 100: $0.65614

0432550129

CONN HEADER VERT 4POS 6.35MM

0432550129 Datasheet
  • 1: $0.87000
  • 10: $0.76783
  • 100: $0.66282

3-641213-3

CONN HEADER VERT 3POS 2.54MM

3-641213-3 Datasheet
  • 1: $0.86000
  • 10: $0.75904
  • 100: $0.66276

826656-3

CONN HEADER VERT 6POS 2.54MM

826656-3 Datasheet
  • 1: $0.86000
  • 10: $0.75357
  • 100: $0.64984

0353631460

CONN HEADER R/A 14POS 2MM

  • 1: $0.86000

5-103672-4

CONN HEADER R/A 5POS 2.54MM

5-103672-4 Datasheet
  • 1: $0.86000
  • 35: $0.71352
  • 105: $0.65413

1722872102

CONN HEADER VERT 2POS 3.5MM

1722872102 Datasheet
  • 1: $0.86000
  • 10: $0.75700
  • 100: $0.65340

5-146261-3

CONN HEADER VERT 6POS 2.54MM

5-146261-3 Datasheet
  • 1: $0.86000
  • 10: $0.75680
  • 100: $0.65305

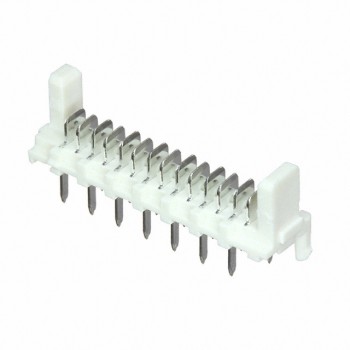

0907790006
