In Stock: 1,728

Can ship immediately

Pricing:
  • 1$1.14
  • 210$0.86819
  • 420$0.78929
  • 630$0.71035
  • 1,050$0.63143
  • 2,100$0.59196

Quote It

Technical Details

  • Series:Micro MATE-N-LOK
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.364" (9.25mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Board Lock, Pick and Place
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250V

Related Products


1-292207-7

CONN HEADER VERT 17POS 1.5MM

1-292207-7 Datasheet
  • 1: $0.89000
  • 10: $0.79153
  • 100: $0.69012

2310-6121-TG

CONN HEADER VERT 10POS 2.54MM

2310-6121-TG Datasheet
  • 1: $0.88000
  • 10: $0.77500
  • 100: $0.66880

826942-3

CONN HEADER VERT 6POS 2.54MM

826942-3 Datasheet
  • 1: $0.88000
  • 10: $0.77026
  • 100: $0.66435

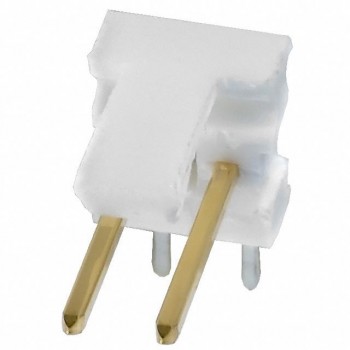

3-641214-2

CONN HEADER R/A 2POS 2.54MM

3-641214-2 Datasheet
  • 1: $0.88000
  • 10: $0.77308
  • 100: $0.66738

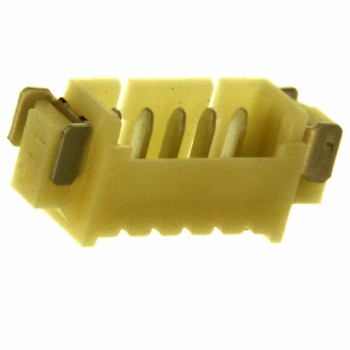

1734261-5

CONN HEADER SMD R/A 5POS 1.25MM

1734261-5 Datasheet
  • 1: $1.55000
  • 1000: $0.96495
  • 2000: $0.93658

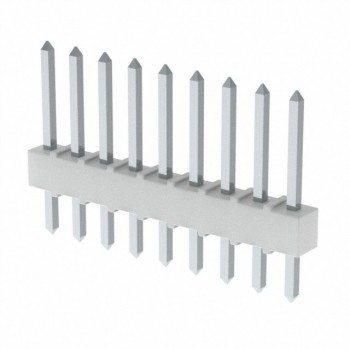

0022032091

CONN HEADER VERT 9POS 2.54MM

0022032091 Datasheet
  • 1: $0.89000
  • 10: $0.78400
  • 100: $0.67630

AWHW 14A-0202-T

CONN HEADER R/A 14POS 2.54MM

AWHW 14A-0202-T Datasheet
  • 1: $0.90000
  • 10: $0.79382
  • 220: $0.68520

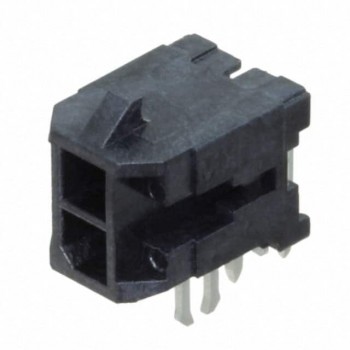

1724470004

CONN HEADER VERT 4POS 4.2MM

1724470004 Datasheet
  • 1: $0.91000
  • 10: $0.79979
  • 100: $0.68998

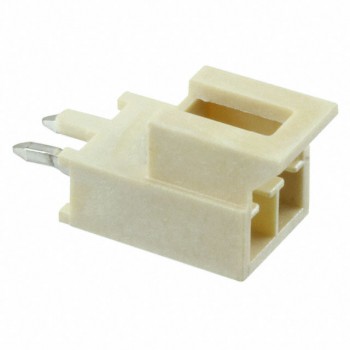

1053092202
