1719740005

Woodhead - Molex
In Stock: 1,272

Can ship immediately

Pricing:
  • 1$1.27
  • 35$1.04857
  • 105$0.96114
  • 525$0.78642
  • 1,015$0.69904
  • 5,005$0.61166
  • 10,010$0.58108

Quote It

Technical Details

  • Series:SL 171974
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:5
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.276" (7.00mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Polarizing Key
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:250V

Related Products


1719750005

CONN HEADER R/A 5POS 2.54MM

1719750005 Datasheet
  • 1: $1.28000
  • 32: $1.05938
  • 128: $0.97109

0430450226

CONN HEADER VERT 2POS

0430450226 Datasheet
  • 1: $1.31000
  • 10: $1.15361
  • 25: $1.08618

5-103672-2

CONN HEADER R/A 3POS 2.54MM

5-103672-2 Datasheet
  • 1: $1.29000
  • 52: $1.02449
  • 104: $0.98001

1722862202

CONN HEADER VERT 2POS 3.5MM

1722862202 Datasheet
  • 1: $1.29000
  • 10: $1.13600
  • 100: $0.97970

292171-6

CONN HEADER SMD 6POS 2MM

292171-6 Datasheet
  • 1: $1.30000
  • 30: $1.07577
  • 120: $0.98617

826468-3

CONN HEADER R/A 3POS 2.54MM

826468-3 Datasheet
  • 1: $1.30000
  • 10: $1.14099
  • 100: $0.98467

3522-08-0101-99

CONN HEADER SMD 8POS 2.54MM

  • 1: $1.30000
  • 10: $1.14518
  • 100: $0.98800

0039306107

CONN HEADER VERT 10POS 4.2MM

  • 1: $1.32000

20021221-00014T4LF

CONN HEADER SMD 14POS 1.27MM

20021221-00014T4LF Datasheet
  • 1: $1.30000
  • 49: $1.07427
  • 147: $0.98480

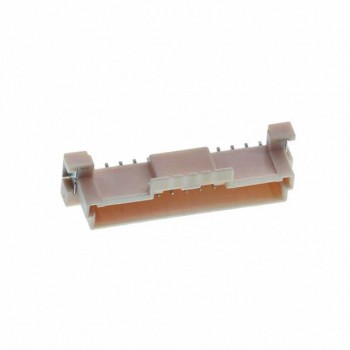

5600201320
