0022041091

Woodhead - Molex
In Stock: 3,831

Can ship immediately

Pricing:
  • 1$1.62

Quote It

Technical Details

  • Series:KK250, 5045
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:9
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.295" (7.49mm)



  • Contact Length - Post:0.134" (3.40mm)
  • Overall Contact Length:0.559" (14.20mm)
  • Insulation Height:0.461" (11.70mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:200.0µin (5.08µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


281742-4

CONN HEADER R/A 8POS 2.54MM

281742-4 Datasheet
  • 1: $1.62000
  • 10: $1.48086
  • 100: $1.28527

0039306088

CONN HEADER VERT 8POS 4.2MM

0039306088 Datasheet
  • 1: $1.64000
  • 10: $1.48815
  • 100: $1.27535

0702470851

CONN HEADER R/A 8POS 2.54MM

  • 1: $1.62000

BM12B-XASS-TF(LF)(SN)

CONN HEADER SMD 12POS 2.5MM

  • 1: $1.63000
  • 10: $1.48300
  • 100: $1.27100

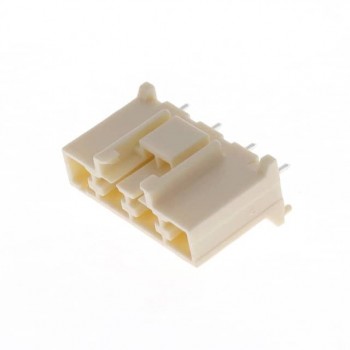

2-178841-1

CONN HEADER VERT 4POS 6.2MM

2-178841-1 Datasheet
  • 1: $1.66000
  • 10: $1.50451
  • 180: $1.28935

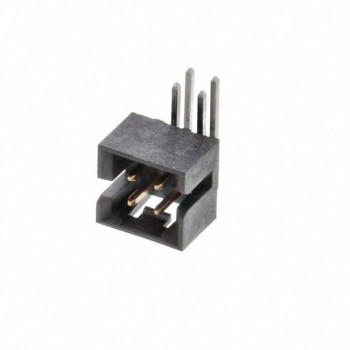

0878330432

CONN HEADER R/A 4POS 2MM

0878330432 Datasheet
  • 1: $1.65000
  • 10: $1.49443
  • 100: $1.28087

87409-105LF

CONN HEADER SMD 10POS 1.27MM

87409-105LF Datasheet
  • 1: $1.65000
  • 63: $1.34171
  • 126: $1.28068

3522-14-0101-99

CONN HEADER SMD 14POS 2.54MM

  • 1: $1.65000
  • 10: $1.49722
  • 100: $1.28333

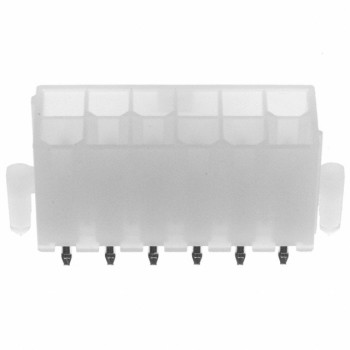

0039306127

CONN HEADER VERT 12POS 4.2MM

  • 1: $1.68000

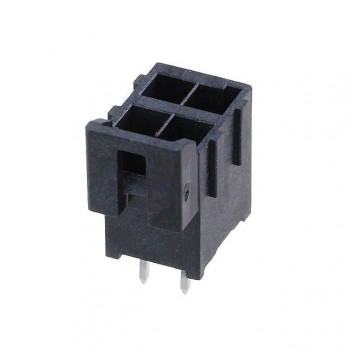

1722981304
