0878980826
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

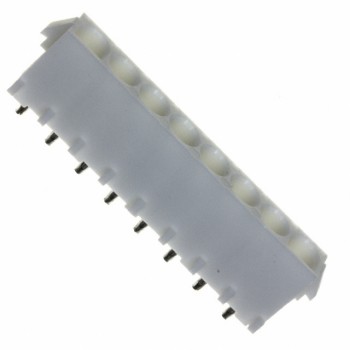

- DescriptionCONN HEADER SMD 8POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0878980826 Datasheet
-
ECAD Model
- Share
In Stock: 142
Can ship immediately
Pricing:
- 1$1.69
- 10$1.53314
- 100$1.31446
- 825$1.06404
- 1,650$0.90756
- 5,775$0.83245
- 10,725$0.81368
Quote It
Technical Details
- Series:C-Grid SL 87898
- Package:Tube
- Part Status:Active
- Connector Type:Header, Breakaway
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:8
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.230" (5.84mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.098" (2.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Polyamide (PA), Nylon, Glass Filled
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
