1718571008

Woodhead - Molex
In Stock: 8,020

Can ship immediately

Pricing:
  • 1$1.68
  • 10$1.52204
  • 100$1.30483
  • 500$1.08733
  • 1,000$0.93199
  • 5,000$0.82637
  • 10,000$0.80772

Quote It

Technical Details

  • Series:KK254, 171857
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.265" (6.73mm)



  • Contact Length - Post:0.100" (2.54mm)
  • Overall Contact Length:-
  • Insulation Height:0.250" (6.35mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-2
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


8-87589-5

CONN HEADER VERT 8POS 2.54MM

8-87589-5 Datasheet
  • 1: $1.70000
  • 10: $1.54630
  • 368: $1.19953

641215-6

CONN HEADER VERT 6POS 2.54MM

641215-6 Datasheet
  • 1: $1.68000
  • 10: $1.53813
  • 100: $1.33504

1761682-3

CONN HEADER R/A 10POS 2.54MM

1761682-3 Datasheet
  • 1: $1.68000
  • 10: $1.52444
  • 100: $1.30625

0436500519

CONN HEADER VERT 5POS 3MM

0436500519 Datasheet
  • 1: $1.71000
  • 10: $1.55114
  • 100: $1.32935

1376135-2

CONN HEADER R/A 3POS 2.5MM

1376135-2 Datasheet
  • 1: $1.69000
  • 10: $1.54897
  • 100: $1.34524

69168-110

CONN HEADER VERT 10POS 2.54MM

69168-110 Datasheet
  • 1: $1.69000
  • 10: $1.52961
  • 100: $1.31153

0039299045

CONN HEADER VERT 4POS 4.2MM

0039299045 Datasheet
  • 1: $1.70000
  • 10: $1.53905
  • 100: $1.31896

641828-1

CONN HEADER VERT 8POS 6.35MM

641828-1 Datasheet
  • 1: $1.70000
  • 10: $1.53845
  • 100: $1.31882

5-146254-7

CONN HEADER VERT 14POS 2.54MM

5-146254-7 Datasheet
  • 1: $1.70000
  • 10: $1.54732
  • 100: $1.32643

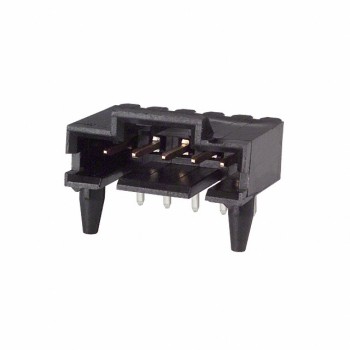

5-104361-4
