G125-MH10605L7P
Harwin
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 6POS 1.25MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet G125-MH10605L7P Datasheet
-
ECAD Model
- Share
In Stock: 228
Can ship immediately
Pricing:
- 1$7.21
- 10$6.90565
- 100$5.70493
- 500$4.80415
- 1,000$4.20363
Quote It
Technical Details
- Series:Gecko
- Package:Strip
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.049" (1.25mm)
- Number of Positions:6
- Number of Rows:2
- Row Spacing - Mating:0.049" (1.25mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:-
- Contact Length - Post:0.130" (3.30mm)
- Overall Contact Length:-
- Insulation Height:0.219" (5.56mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:8.00µin (0.203µm)
- Contact Finish - Post:-
- Contact Material:Phosphor Bronze
- Insulation Material:Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
- Features:Solder Retention
- Operating Temperature:-65°C ~ 150°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Green
- Current Rating (Amps):2A
- Voltage Rating:250V
Related Products

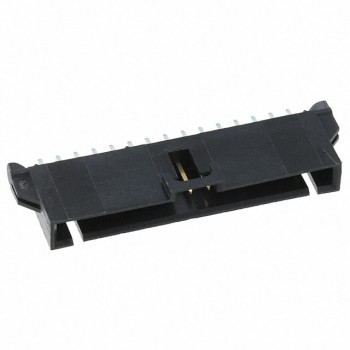

CONN HEADER VERT 18POS 4.2MM
