929647-05-36-I

3M
In Stock: 386

Can ship immediately

Pricing:
  • 1$8.53
  • 10$8.15448
  • 100$6.85751
  • 500$5.74548
  • 1,000$5.07827

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:36
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.235" (5.97mm)



  • Contact Length - Post:0.610" (15.49mm)
  • Overall Contact Length:0.945" (24.00mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


0039296208

CONN HEADER VERT 20POS 4.2MM

0039296208 Datasheet
  • 1: $8.58000
  • 10: $8.20600
  • 100: $6.90050

0039296248

CONN HEADER VERT 24POS 4.2MM

0039296248 Datasheet
  • 1: $8.64000
  • 10: $8.26600
  • 100: $6.95100

0015477640

CONN HEADER VERT 40POS 2.54MM

  • 1: $8.71000

0039301241

CONN HEADER R/A 24POS 4.2MM

  • 1: $8.72000

0430452202

CONN HEADER R/A 22POS 3MM

  • 1: $8.83000

1658694-4

CONN HEADER VERT 50POS 2.54MM

1658694-4 Datasheet
  • 1: $8.77000
  • 10: $8.43756
  • 100: $7.08748

0705550050

CONN HEADER R/A 16POS 2.54MM

0705550050 Datasheet
  • 1: $8.86000
  • 10: $8.47350
  • 100: $7.12551

65863-620LF

CONN HEADER VERT 64POS 2.54MM

65863-620LF Datasheet
  • 1: $8.95000
  • 10: $8.59703
  • 100: $7.34353

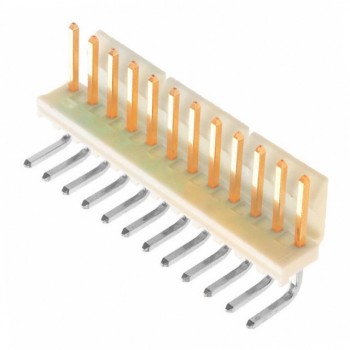

0026615120

CONN HEADER R/A 12POS 3.96MM

0026615120 Datasheet
  • 1: $8.89000
  • 10: $8.50700
  • 100: $7.15360

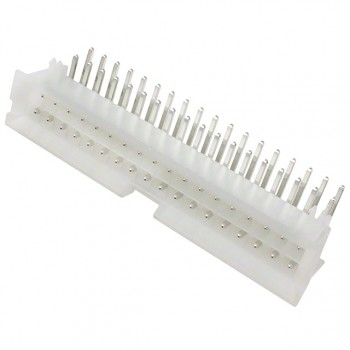

0437590001
