In Stock: 341

Can ship immediately

Pricing:
  • 1$9.39
  • 10$8.4
  • 100$6.9174
  • 500$5.46804
  • 1,000$4.758

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:72
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.820" (20.83mm)
  • Overall Contact Length:1.150" (29.21mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-65°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products

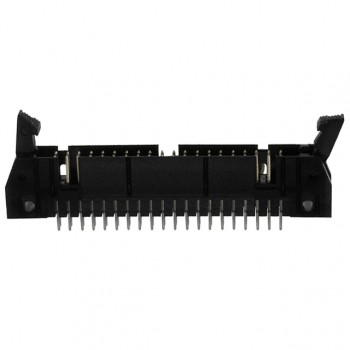

5499374-9

CONN HEADER VERT 40POS 2.54MM

5499374-9 Datasheet
  • 1: $9.53000
  • 32: $8.28269
  • 128: $7.66141

399-10-164-10-009101

CONN HEADER R/A 64POS 2.54MM

399-10-164-10-009101 Datasheet
  • 1: $9.46000
  • 10: $9.04574
  • 100: $7.60664

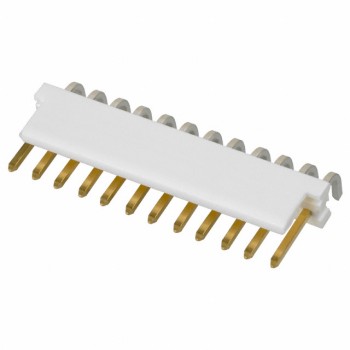

4-641210-2

CONN HEADER R/A 12POS 3.96MM

4-641210-2 Datasheet
  • 1: $9.50000
  • 10: $9.11902
  • 100: $7.78931

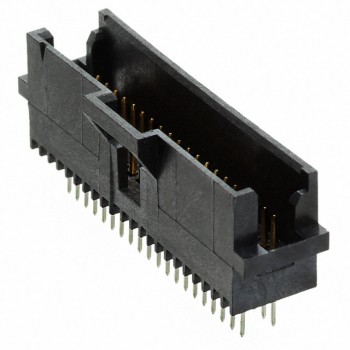

5-104666-3

CONN HEADER VERT 40POS 1.27MM

5-104666-3 Datasheet
  • 1: $9.59000
  • 16: $9.17598
  • 112: $7.71625

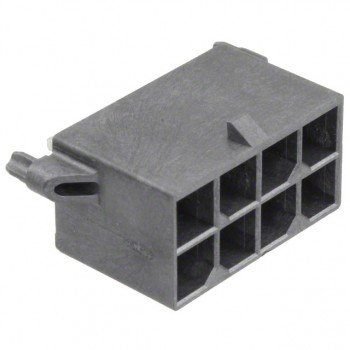

1720651008

CONN HEADER VERT 8POS 5.7MM

1720651008 Datasheet
  • 1: $9.60000
  • 10: $9.21432
  • 100: $7.87089

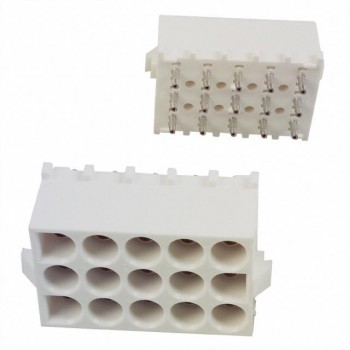

350738-4

CONN HEADER VERT 15POS 6.35MM

350738-4 Datasheet
  • 1: $9.63000
  • 10: $9.21163
  • 100: $7.74659

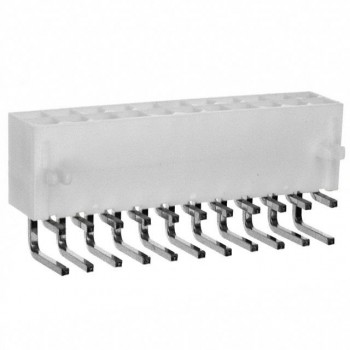

0039301222

CONN HEADER R/A 22POS 4.2MM

  • 1: $9.68000

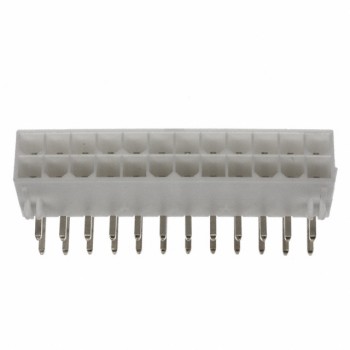

0039301242

CONN HEADER R/A 24POS 4.2MM

0039301242 Datasheet
  • 1: $9.77000
  • 10: $9.34200
  • 100: $7.85600

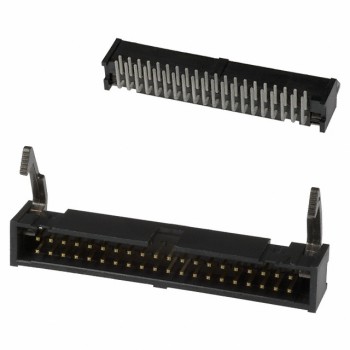

1-1761609-3
