SMH100-LPSE-D25-RA-BK

Sullins Connector Solutions
In Stock: 174

Can ship immediately

Pricing:
  • 1$9.89
  • 10$9.46
  • 100$7.9554
  • 500$6.66532
  • 1,000$6.2114

Quote It

Technical Details

  • Series:SMH
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:50
  • Number of Rows:2
  • Row Spacing - Mating:0.039" (1.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.071" (1.80mm)



  • Contact Length - Post:0.102" (2.60mm)
  • Overall Contact Length:-
  • Insulation Height:0.122" (3.10mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products

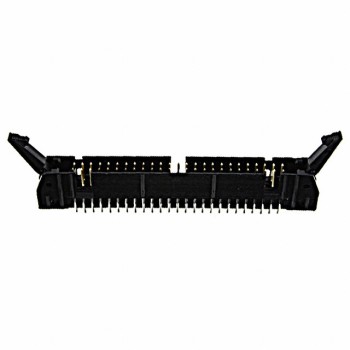

1-5102321-0

CONN HEADER VERT 50POS 2.54MM

1-5102321-0 Datasheet
  • 1: $10.02000
  • 18: $9.62776
  • 108: $8.22383

G125-MV13405L1P

CONN HEADER VERT 34POS 1.25MM

G125-MV13405L1P Datasheet
  • 1: $9.93000
  • 10: $9.50128
  • 100: $7.98971

81040-600203-RB

CONN HEADER VERT 40POS 1.27MM

81040-600203-RB Datasheet
  • 1: $9.93000
  • 10: $9.49543
  • 100: $7.98515

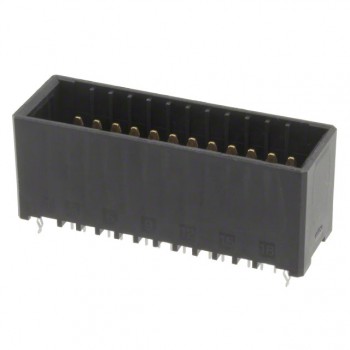

1827538-1

CONN HEADER VERT 48POS 2.5MM

1827538-1 Datasheet
  • 1: $9.99000
  • 16: $9.55669
  • 104: $8.03616

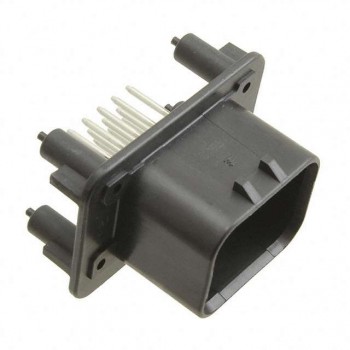

1-776261-1

CONN HEADER VERT 14POS 4MM

1-776261-1 Datasheet
  • 1: $10.10000
  • 10: $9.67282
  • 100: $7.99059

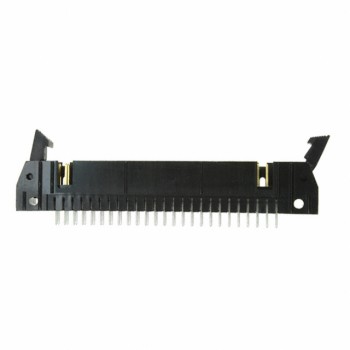

1-5499374-0

CONN HEADER VERT 50POS 2.54MM

1-5499374-0 Datasheet
  • 1: $10.32000
  • 24: $9.91341
  • 120: $8.46763

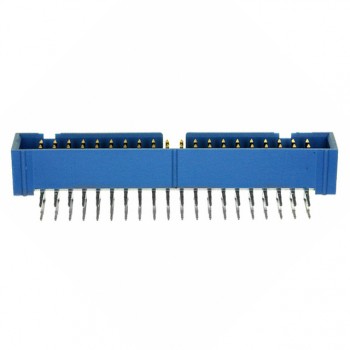

3-1761605-3

CONN HEADER R/A 40POS 2.54MM

3-1761605-3 Datasheet
  • 1: $10.22000
  • 10: $9.77682
  • 100: $8.22125

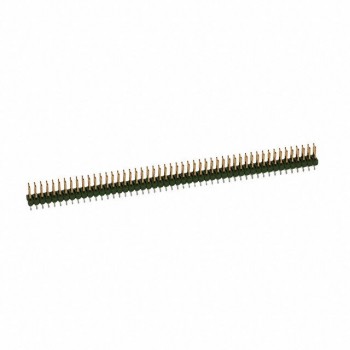

5-826632-0

CONN HEADER VERT 100POS 2.54MM

5-826632-0 Datasheet
  • 1: $10.39000
  • 10: $9.94009
  • 100: $8.35883

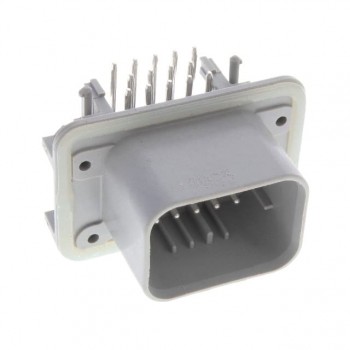

776267-4

CONN HEADER R/A 14POS 4MM

776267-4 Datasheet
  • 1: $10.40000
  • 10: $9.96950
  • 100: $8.23568

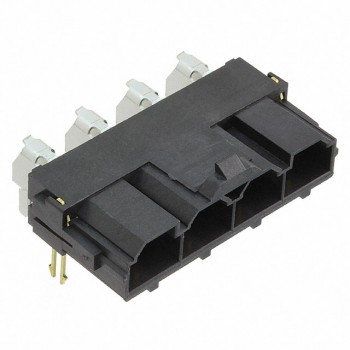

0428204223
