- Lifecycle status Active
- RoHS RoHS Compliant

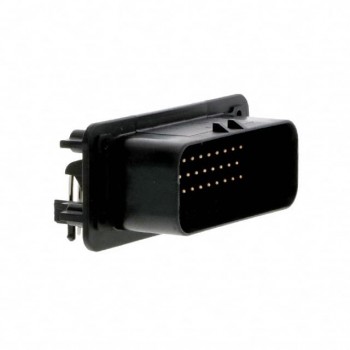

- DescriptionCONN HEADER R/A 23POS 4MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1-776087-5 Datasheet
-
ECAD Model
- Share
In Stock: 373
Can ship immediately
Pricing:
- 1$16.8
- 10$16.06657
- 100$13.51052
- 500$11.31962
- 1,000$10.00509
Quote It
Technical Details
- Series:AMPSEAL
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.157" (4.00mm)
- Number of Positions:23
- Number of Rows:3
- Row Spacing - Mating:0.157" (4.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Panel Mount, Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:-
- Contact Shape:Circular
- Contact Finish - Mating:Gold-Palladium
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:-
- Contact Material:Brass
- Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
- Features:Board Guide, Sealed
- Operating Temperature:-40°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Blue
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:250VAC
