In Stock: 8,627

Can ship immediately

Pricing:
  • 1$0.51
  • 10$0.48352
  • 100$0.37779
  • 500$0.3325
  • 1,000$0.27961
  • 5,000$0.24938
  • 10,000$0.23427

Quote It

Technical Details

  • Series:Economy Power 2.5
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:0.134" (3.40mm)
  • Overall Contact Length:-
  • Insulation Height:0.346" (8.80mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Thermoplastic
  • Features:Board Guide
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):4.2A
  • Voltage Rating:250VAC

Related Products


1586076-1

CONN HEADER VERT 2POS 6.35MM

1586076-1 Datasheet
  • 1: $0.51000
  • 10: $0.48167
  • 100: $0.37655

4282-1-0200-06-SP

CONN HEADER R/A 6POS DUAL 94V-0

  • 1: $0.52000

440055-7

CONN HEADER R/A 7POS 2MM

440055-7 Datasheet
  • 1: $0.51000
  • 10: $0.47430
  • 100: $0.36332

0878320614

CONN HEADER SMD 6POS 2MM

0878320614 Datasheet
  • 1: $0.75000
  • 500: $0.46368
  • 1000: $0.41216

3-1123723-8

CONN HEADER VERT 8POS 3.96MM

3-1123723-8 Datasheet
  • 1: $0.53000
  • 10: $0.50138
  • 100: $0.38436

1-292173-5

CONN HEADER SMD R/A 5POS 2MM

1-292173-5 Datasheet
  • 1: $0.84000
  • 500: $0.51550
  • 1000: $0.45822

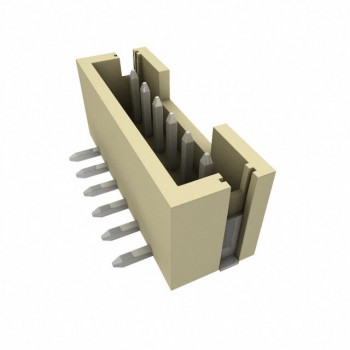

1775470-6

CONN HEADER SMD 6POS 2MM

1775470-6 Datasheet
  • 1: $0.85000
  • 500: $0.57912
  • 1000: $0.52119

54025-04-0200-01

WIRE-TO BOARD HEADER, 2.5MM, 4 C

  • 1: $0.54000

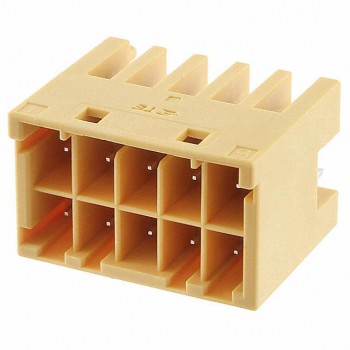

4-1971906-5

CONN HEADER VERT 10POS 3.3MM

4-1971906-5 Datasheet
  • 1: $0.55000
  • 10: $0.51741
  • 25: $0.46567

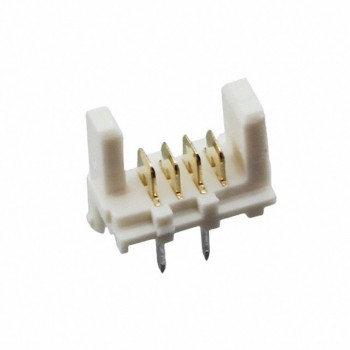

0907793001
