6-1775444-2
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD R/A 12POS 1.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 6-1775444-2 Datasheet
-
ECAD Model
- Share
In Stock: 4,149
Can ship immediately
Pricing:
- 1$1.33
- 1,000$0.76818
- 2,000$0.72551
- 3,000$0.70417
- 5,000$0.68283
- 10,000$0.65296
Quote It
Technical Details
- Series:High Performance Interconnect (HPI)
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.059" (1.50mm)
- Number of Positions:12
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:-
- Contact Length - Mating:0.106" (2.70mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.175" (4.45mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Thermoplastic
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):3A
- Voltage Rating:250VAC
Related Products

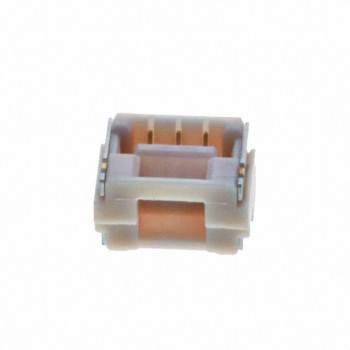

WIRE-TO BOARD WAFER, 2.5MM, 8 CO
- 1: $0.71000

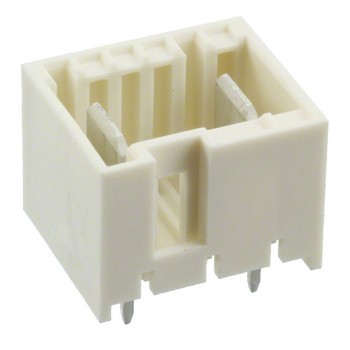

WIRE-TO BOARD HEADER, 2.5MM, 6 C
