In Stock: 2,174

Can ship immediately

Pricing:
  • 1$0.72
  • 10$0.679
  • 100$0.5206
  • 500$0.45266
  • 1,000$0.37344
  • 5,000$0.32818
  • 10,000$0.30555

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Tab
  • Pitch - Mating:0.197" (5.00mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:2
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.504" (12.80mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Silver
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Silver
  • Contact Material:-
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:Board Guide, Glow Wire Compliant
  • Operating Temperature:-40°C ~ 120°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:250VAC

Related Products


826926-7

CONN HEADER VERT 7POS 2.54MM

826926-7 Datasheet
  • 1: $0.72000
  • 10: $0.67057
  • 100: $0.51410

1-640454-1

CONN HEADER VERT 11POS 2.54MM

1-640454-1 Datasheet
  • 1: $0.72000
  • 10: $0.68021
  • 100: $0.53091

146132-2

CONN HEADER SMD 4POS 2.54MM

146132-2 Datasheet
  • 1: $0.73000
  • 54: $0.54512
  • 108: $0.52246

0353631360

CONN HEADER R/A 13POS 2MM

  • 1: $0.73000

917724-1

CONN HEADER VERT 4POS 2.5MM

917724-1 Datasheet
  • 1: $0.73000
  • 10: $0.68690
  • 100: $0.53633

10132449-1021GLF

CONN HEADER R/A 10POS 3MM

10132449-1021GLF Datasheet
  • 1: $0.74000
  • 10: $0.64978
  • 182: $0.56043

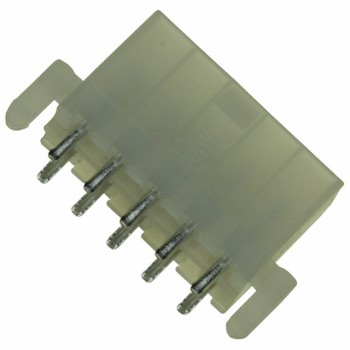

1-1586039-0

CONN HEADER VERT 10POS 4.2MM

1-1586039-0 Datasheet
  • 1: $0.73000
  • 10: $0.68437
  • 100: $0.53482

SM20B-SHLS-TF(LF)(SN)

CONN HEADER SMD R/A 20POS 1MM

  • 1: $0.73034
  • 4500: $0.73034
  • 9000: $0.66990

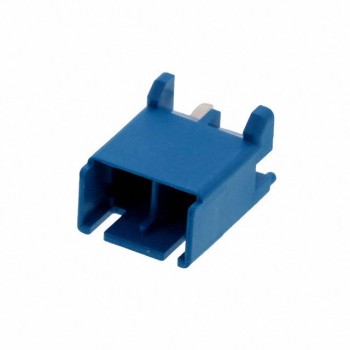

2-1376382-3

CONN HEADER VERT 2POS 5MM

2-1376382-3 Datasheet
  • 1: $0.74000
  • 10: $0.69000
  • 100: $0.52900

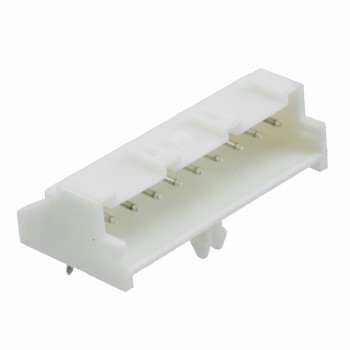

1744426-9
