SM20B-SHLS-TF(LF)(SN)

JST
In Stock: 9,194

Can ship immediately

Pricing:
  • 1$0.73034
  • 4,500$0.73034
  • 9,000$0.6699
  • 13,500$0.65479

Quote It

Technical Details

  • Series:SHL
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Outer Shroud Contact
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:20
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.069" (1.75mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Solder Retention
  • Operating Temperature:-25°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):1A
  • Voltage Rating:50V

Related Products


2-1376382-3

CONN HEADER VERT 2POS 5MM

2-1376382-3 Datasheet
  • 1: $0.74000
  • 10: $0.69000
  • 100: $0.52900

1744426-9

CONN HEADER R/A 9POS 2.5MM

1744426-9 Datasheet
  • 1: $0.74000
  • 10: $0.69129
  • 25: $0.62610

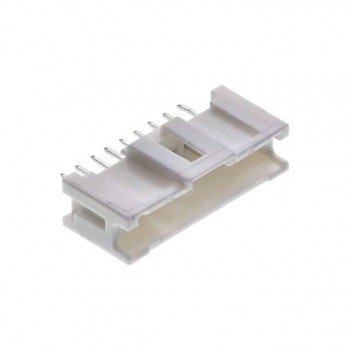

0559320930

CONN HEADER VERT 9POS 2MM

0559320930 Datasheet
  • 1: $0.75000
  • 10: $0.70439
  • 100: $0.53990

0559321030

CONN HEADER VERT 10POS 2MM

0559321030 Datasheet
  • 1: $0.75000
  • 10: $0.65878
  • 100: $0.56818

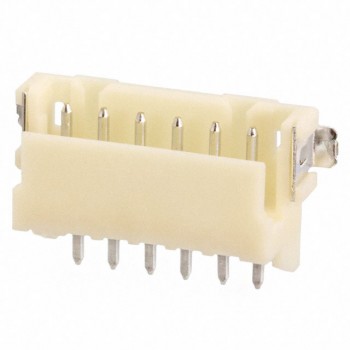

1-292173-6

CONN HEADER SMD R/A 6POS 2MM

1-292173-6 Datasheet
  • 1: $1.16000
  • 500: $0.71524
  • 1000: $0.63578

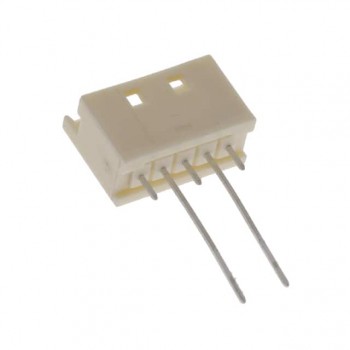

5-1747072-5

CONN HEADER VERT 5POS 2.5MM

5-1747072-5 Datasheet
  • 1: $1.40000
  • 450: $1.06011
  • 900: $0.93966

54025-10-0100-01

WIRE-TO BOARD WAFER, 2.5MM, 10 C

  • 1: $0.75000

54025-08-0200-01

WIRE-TO BOARD HEADER, 2.5MM, 8 C

  • 1: $0.75000

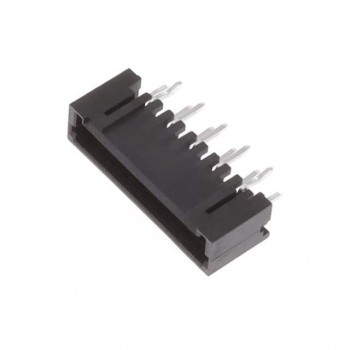

3-292207-1
