0559321030

Woodhead - Molex
In Stock: 1,326

Can ship immediately

Pricing:
  • 1$0.75
  • 10$0.65878
  • 100$0.56818
  • 500$0.46484
  • 1,800$0.38736
  • 5,400$0.36154
  • 10,800$0.34346

Quote It

Technical Details

  • Series:MicroClasp 55932
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.144" (3.66mm)



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:0.360" (9.15mm)
  • Insulation Height:0.384" (9.75mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:-
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


1-292173-6

CONN HEADER SMD R/A 6POS 2MM

1-292173-6 Datasheet
  • 1: $1.16000
  • 500: $0.71524
  • 1000: $0.63578

5-1747072-5

CONN HEADER VERT 5POS 2.5MM

5-1747072-5 Datasheet
  • 1: $1.40000
  • 450: $1.06011
  • 900: $0.93966

54025-10-0100-01

WIRE-TO BOARD WAFER, 2.5MM, 10 C

  • 1: $0.75000

54025-08-0200-01

WIRE-TO BOARD HEADER, 2.5MM, 8 C

  • 1: $0.75000

3-292207-1

CONN HEADER VERT 11POS 1.5MM

3-292207-1 Datasheet
  • 1: $0.76000
  • 10: $0.67328
  • 25: $0.63645

0535170410

CONN HEADER VERT 4POS 2.5MM

0535170410 Datasheet
  • 1: $0.76000
  • 10: $0.66880
  • 100: $0.57699

643464-5

CONN HEADER VERT 7POS 3.96MM

643464-5 Datasheet
  • 1: $0.75000
  • 10: $0.70893
  • 100: $0.55321

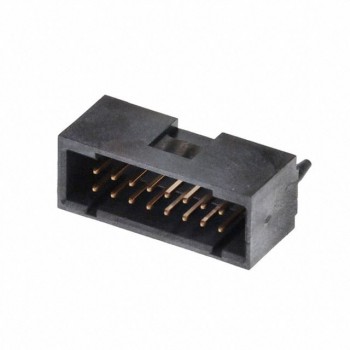

0559321230

CONN HEADER VERT 12POS 2MM

0559321230 Datasheet
  • 1: $0.76000
  • 10: $0.66896
  • 100: $0.57727

3210-08-002-12-00

CONN HEADER R/A 8POS 1.27MM

3210-08-002-12-00 Datasheet
  • 1: $0.76000
  • 2520: $0.76000

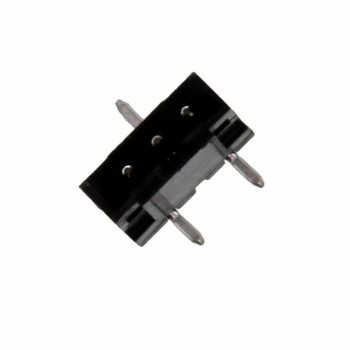

292171-3
