In Stock: 2,009

Can ship immediately

Pricing:
  • 1$0.78
  • 10$0.6926
  • 315$0.55395
  • 630$0.50358
  • 1,260$0.45323
  • 5,040$0.40287
  • 10,080$0.38524

Quote It

Technical Details

  • Series:VAL-U-LOK
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.504" (12.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:80.0µin (2.03µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass Alloy
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):9A
  • Voltage Rating:600VAC

Related Products


292227-7

CONN HEADER SMD R/A 7POS 1.5MM

292227-7 Datasheet
  • 1: $1.24000
  • 700: $0.76021
  • 1400: $0.67574

2-292174-4

CONN HEADER SMD 4POS 2MM

2-292174-4 Datasheet
  • 1: $1.24000
  • 700: $0.76180
  • 1400: $0.67715

1-440055-2

CONN HEADER R/A 12POS 2MM

1-440055-2 Datasheet
  • 1: $0.79000
  • 10: $0.70040
  • 100: $0.61148

1-292207-1

CONN HEADER VERT 11POS 1.5MM

1-292207-1 Datasheet
  • 1: $0.79000
  • 10: $0.70515
  • 100: $0.61513

0879140613

CONN HEADER VERT 6POS 2.54MM

0879140613 Datasheet
  • 1: $0.80000
  • 10: $0.70582
  • 100: $0.60861

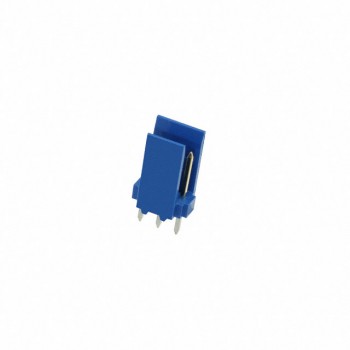

281696-3

CONN HEADER VERT 3POS 2.54MM

281696-3 Datasheet
  • 1: $0.79000
  • 10: $0.73662
  • 100: $0.56496

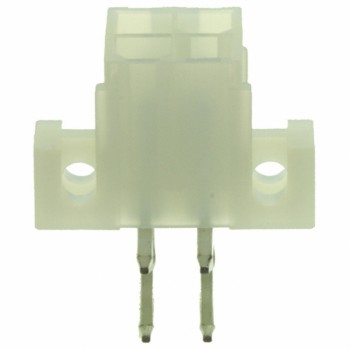

1586043-4

CONN HEADER R/A 4POS 4.2MM

1586043-4 Datasheet
  • 1: $0.79000
  • 10: $0.74196
  • 100: $0.56923

3220-16-0300-00-TR

CONN HEADER SMD 16POS 1.27MM

  • 1: $1.28000

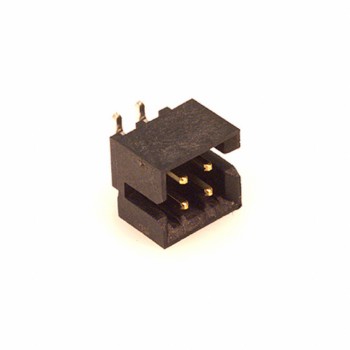

0878325122

CONN HEADER SMD 4POS 2MM

0878325122 Datasheet
  • 1: $1.15000
  • 500: $0.71586
  • 1000: $0.63632

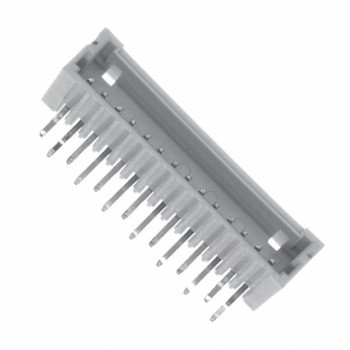

1-292206-4
