In Stock: 7,617

Can ship immediately

Pricing:
  • 1$0.79
  • 10$0.70515
  • 100$0.61513
  • 500$0.51256
  • 1,000$0.4613
  • 5,000$0.41005
  • 10,000$0.39211

Quote It

Technical Details

  • Series:Mini CT
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.059" (1.50mm)
  • Number of Positions:11
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.094" (2.40mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.307" (7.80mm)
  • Insulation Height:0.272" (6.91mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:39.4µin (1.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:Board Guide
  • Operating Temperature:-30°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Gray
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:50VAC

Related Products


0879140613

CONN HEADER VERT 6POS 2.54MM

0879140613 Datasheet
  • 1: $0.80000
  • 10: $0.70582
  • 100: $0.60861

281696-3

CONN HEADER VERT 3POS 2.54MM

281696-3 Datasheet
  • 1: $0.79000
  • 10: $0.73662
  • 100: $0.56496

1586043-4

CONN HEADER R/A 4POS 4.2MM

1586043-4 Datasheet
  • 1: $0.79000
  • 10: $0.74196
  • 100: $0.56923

3220-16-0300-00-TR

CONN HEADER SMD 16POS 1.27MM

  • 1: $1.28000

0878325122

CONN HEADER SMD 4POS 2MM

0878325122 Datasheet
  • 1: $1.15000
  • 500: $0.71586
  • 1000: $0.63632

1-292206-4

CONN HEADER R/A 14POS 1.5MM

1-292206-4 Datasheet
  • 1: $0.81000
  • 10: $0.71924
  • 100: $0.62751

2-178496-1

CONN HEADER R/A 2POS 7.92MM

2-178496-1 Datasheet
  • 1: $0.80000
  • 10: $0.70700
  • 25: $0.66560

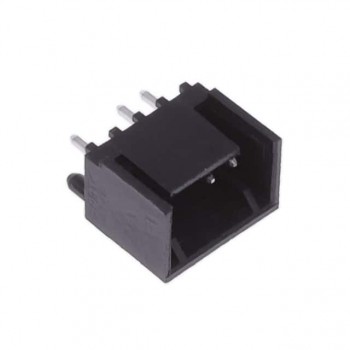

3-644729-4

CONN HEADER VERT 4POS 2.54MM

3-644729-4 Datasheet
  • 1: $0.80000
  • 10: $0.71111
  • 100: $0.62104

10131318-0212100LF

CONN HEADER R/A 2POS

  • 1: $0.81000
  • 10: $0.71393
  • 100: $0.62351

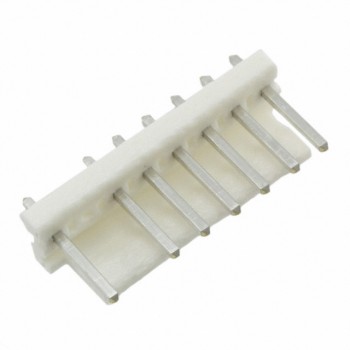

641922-3
