In Stock: 2,211

Can ship immediately

Pricing:
  • 1$0.81
  • 10$0.71393
  • 100$0.62351
  • 690$0.51952
  • 1,380$0.46757
  • 5,520$0.41562
  • 10,350$0.39744

Quote It

Technical Details

  • Series:Minitek® Pwr 4.2 High Current
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:-
  • Number of Positions:2
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.404" (10.26mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:600V

Related Products


641922-3

CONN HEADER VERT 8POS 3.96MM

641922-3 Datasheet
  • 1: $0.80000
  • 10: $0.70927
  • 100: $0.61863

SM22B-SHLS-TF(LF)(SN)

CONN HEADER SMD R/A 22POS 1MM

  • 1: $0.80106
  • 4500: $0.80106
  • 9000: $0.74384

5041872670

CONN HEADER SMD 26POS 1.25MM

5041872670 Datasheet
  • 1: $1.16000
  • 700: $0.72109
  • 1400: $0.64096

1376478-2

CONN HEADER VERT 2POS 2.5MM

1376478-2 Datasheet
  • 1: $0.81000
  • 10: $0.71690
  • 100: $0.62603

1510482204

CONN HEADER VERT 2POS

1510482204 Datasheet
  • 1: $0.81000
  • 10: $0.75896
  • 100: $0.58209

5164713-5

CONN HEADER VERT 5POS 2.5MM

5164713-5 Datasheet
  • 1: $0.81000
  • 10: $0.71238
  • 100: $0.61446

0460150207

CONN HEADER VERT 2POS

0460150207 Datasheet
  • 1: $0.82000
  • 10: $0.72079
  • 100: $0.62229

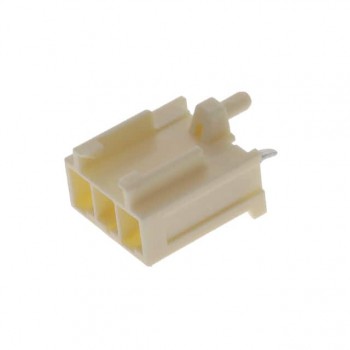

179844-1

CONN HEADER VERT 3POS 3.96MM

179844-1 Datasheet
  • 1: $0.81000
  • 10: $0.71690
  • 25: $0.67817

0559321110

CONN HEADER VERT 11POS 2MM

0559321110 Datasheet
  • 1: $0.82000
  • 10: $0.72281
  • 100: $0.62360

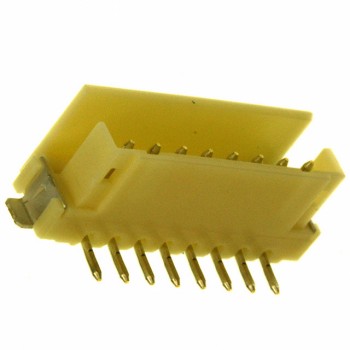

292174-8
