In Stock: 8,578

Can ship immediately

Pricing:
  • 1$1.28
  • 700$0.87204
  • 1,400$0.78484
  • 2,100$0.74123
  • 3,500$0.71943
  • 4,900$0.69763
  • 17,500$0.65403

Quote It

Technical Details

  • Series:CT
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.177" (4.50mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.307" (7.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:Board Guide, Solder Retention
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:125VAC

Related Products


1586842-6

CONN HEADER SMD 6POS 3MM

1586842-6 Datasheet
  • 1: $0.81678
  • 10: $0.74279
  • 100: $0.64473

0532901080

CONN HEADER VERT 10POS 2MM

  • 1: $0.83000

0907793003

CONN HEADER VERT 8POS 1.27MM

0907793003 Datasheet
  • 1: $0.82000
  • 10: $0.71883
  • 100: $0.61990

178496-1

CONN HEADER R/A 3POS 3.96MM

178496-1 Datasheet
  • 1: $0.82000
  • 10: $0.72300
  • 25: $0.68040

3020-16-0300-00-TR

CONN HEADER SMD 16POS 2.54MM

  • 1: $1.19000

0878321016

CONN HEADER SMD 10POS 2MM

0878321016 Datasheet
  • 1: $0.82000
  • 42: $0.67714
  • 126: $0.62063

0874371343

CONN HEADER SMD 13POS 1.5MM

  • 1: $0.95000

917894-1

CONN HEADER VERT 2POS 2.5MM

917894-1 Datasheet
  • 1: $1.37000
  • 900: $0.79870
  • 1800: $0.68460

5055750771

CONN HEADER SMD 7POS 2MM

5055750771 Datasheet
  • 1: $1.20000
  • 600: $0.74628
  • 1200: $0.66336

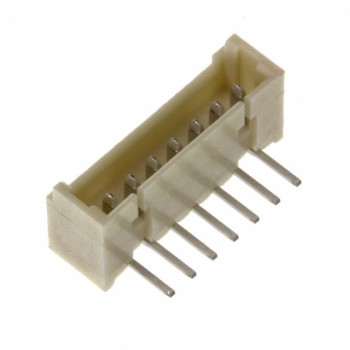

1734829-7
