In Stock: 10,757

Can ship immediately

Pricing:
  • 1$0.83
  • 58$0.65456
  • 116$0.62604
  • 522$0.51221
  • 1,044$0.45529
  • 5,046$0.39838
  • 10,034$0.37846

Quote It

Technical Details

  • Series:High Performance Interconnect (HPI)
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.049" (1.25mm)
  • Number of Positions:7
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:-
  • Contact Length - Mating:-



  • Contact Length - Post:0.091" (2.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.126" (3.20mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA9T), Nylon 9T, Glass Filled
  • Features:-
  • Operating Temperature:-25°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):1A
  • Voltage Rating:125V

Related Products


0460150206

CONN HEADER VERT 2POS

0460150206 Datasheet
  • 1: $0.83000
  • 10: $0.72600
  • 100: $0.62610

1-1318300-0

CONN HEADER VERT 10POS 3.96MM

1-1318300-0 Datasheet
  • 1: $0.83000
  • 12: $0.72932
  • 108: $0.62901

54025-10-0200-01

WIRE-TO BOARD HEADER, 2.5MM, 10

  • 1: $0.84000

G881B03102KEU

CONN HEADER VERT 3POS 3MM

G881B03102KEU Datasheet
  • 1: $0.85000
  • 10: $0.74881
  • 465: $0.58690

4282-1-0100-12-SP

CONN HEADER VERT 12POS DL 94V-0

  • 1: $0.85000

4282-1-0200-10-SP

CONN HEADER R/A 10POS DUAL 94V-0

  • 1: $0.85000

1734598-6

CONN HEADER VERT 6POS 1.25MM

1734598-6 Datasheet
  • 1: $0.85000
  • 66: $0.68565
  • 132: $0.65821

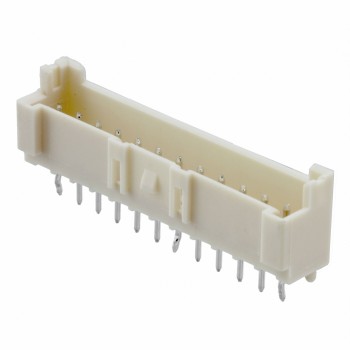

1-1744418-2

CONN HEADER VERT 12POS 2.5MM

1-1744418-2 Datasheet
  • 1: $0.85000
  • 10: $0.74665
  • 25: $0.70627

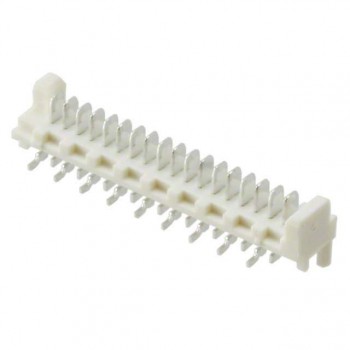

0908140918

CONN HEADER SMD 18POS 1.27MM

0908140918 Datasheet
  • 1: $1.23000
  • 600: $0.76627
  • 1200: $0.68112

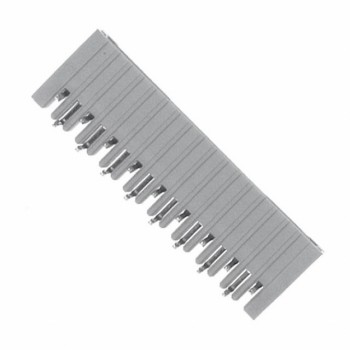

1-292206-7
