1-292206-7
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 17POS 1.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1-292206-7 Datasheet
-
ECAD Model
- Share
In Stock: 12,050
Can ship immediately
Pricing:
- 1$0.88
- 10$0.77875
- 100$0.6794
- 500$0.56619
- 1,000$0.50958
- 5,000$0.45296
- 10,000$0.43314
Quote It
Technical Details
- Series:Mini CT
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.059" (1.50mm)
- Number of Positions:17
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Kinked Pin, Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.094" (2.40mm)
- Contact Length - Post:0.118" (3.00mm)
- Overall Contact Length:-
- Insulation Height:0.193" (4.90mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon, Glass Filled
- Features:-
- Operating Temperature:-30°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Gray
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:50VAC
Related Products

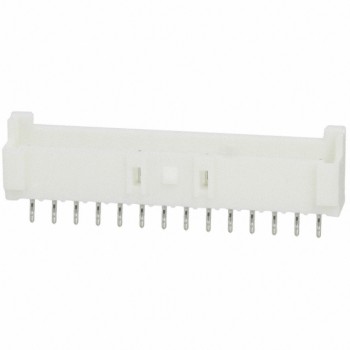

WIRE-TO BOARD HEADER, 2.5MM, 18
- 1: $0.87000
WIRE-TO BOARD WAFER, 2.5MM, 20 C
- 1: $0.87000

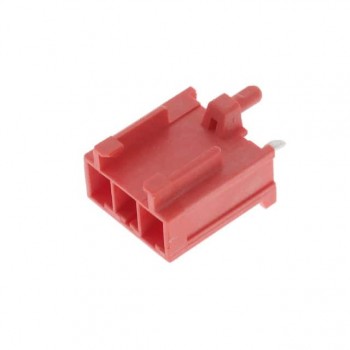

CONN HEADER VERT 3POS 3.96MM
- 1: $0.87000
- 10: $0.76100
- 340: $0.59715

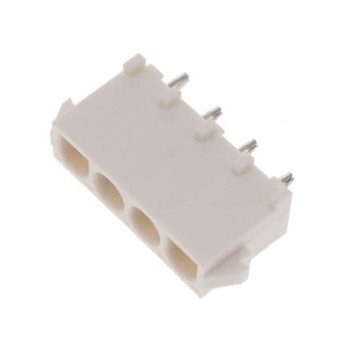

CONN HEADER VERT 4POS 6.35MM
