53025-18-0200-01
CnC Tech- Lifecycle status Active
- RoHS RoHS Compliant

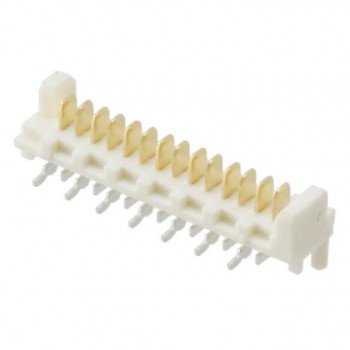

- DescriptionWIRE-TO BOARD HEADER, 2.5MM, 18
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 5,674
Can ship immediately
Pricing:
- 1$0.87
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.098" (2.50mm)
- Number of Positions:18
- Number of Rows:2
- Row Spacing - Mating:0.098" (2.50mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.138" (3.50mm)
- Overall Contact Length:-
- Insulation Height:0.394" (10.00mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
- Features:-
- Operating Temperature:-25°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:White
- Current Rating (Amps):3A (AC/DC)
- Voltage Rating:250VAC/DC
