In Stock: 1,556

Can ship immediately

Pricing:
  • 1$0.89
  • 10$0.78111
  • 100$0.67431
  • 500$0.55167
  • 1,000$0.49038
  • 5,000$0.42907
  • 10,000$0.40762

Quote It

Technical Details

  • Series:MTA-100
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:17
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:16
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.295" (7.49mm)



  • Contact Length - Post:0.140" (3.56mm)
  • Overall Contact Length:0.535" (13.59mm)
  • Insulation Height:0.305" (7.75mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC

Related Products


0908143914

CONN HEADER SMD 14POS 1.27MM

0908143914 Datasheet
  • 1: $1.29000
  • 600: $0.80352
  • 1200: $0.71424

1-292230-8

CONN HEADER SMD 18POS 1.5MM

1-292230-8 Datasheet
  • 1: $1.41000
  • 500: $0.86652
  • 1000: $0.77024

3-292207-9

CONN HEADER VERT 19POS 1.5MM

3-292207-9 Datasheet
  • 1: $0.91000
  • 10: $0.80726
  • 25: $0.76362

1734829-8

CONN HEADER R/A 8POS 1.25MM

1734829-8 Datasheet
  • 1: $0.90000
  • 52: $0.72804
  • 104: $0.69901

0532901380

CONN HEADER VERT 13POS 2MM

0532901380 Datasheet
  • 1: $0.91000
  • 10: $0.79777
  • 100: $0.68867

3-641211-4

CONN HEADER VERT 4POS 2.54MM

3-641211-4 Datasheet
  • 1: $0.90000
  • 10: $0.79670
  • 100: $0.69484

280611-1

CONN HEADER VERT 6POS 3.96MM

280611-1 Datasheet
  • 1: $0.90000
  • 10: $0.78898
  • 100: $0.68055

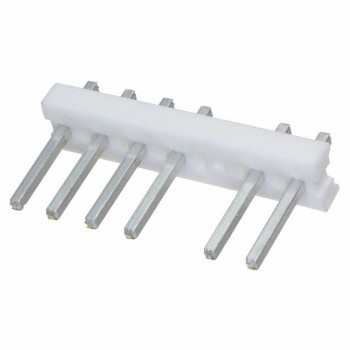

641991-2

CONN HEADER VERT 7POS 3.96MM

641991-2 Datasheet
  • 1: $0.90000
  • 10: $0.79337
  • 100: $0.69251

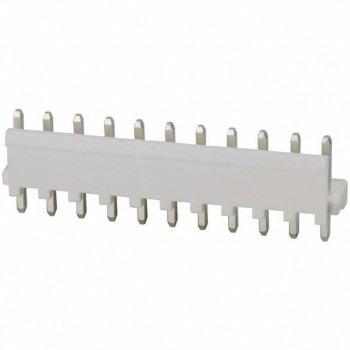

1-1318300-1

CONN HEADER VERT 11POS 3.96MM

1-1318300-1 Datasheet
  • 1: $0.91000
  • 11: $0.79875
  • 110: $0.68883

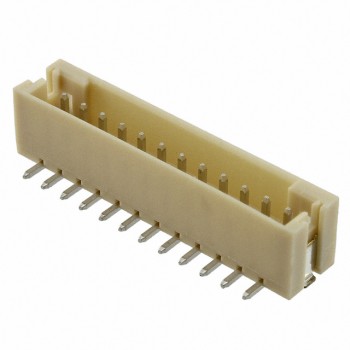

1-1775470-2
