In Stock: 5,024

Can ship immediately

Pricing:
  • 1$0.9
  • 10$0.7967
  • 100$0.69484
  • 500$0.57901
  • 1,000$0.5211
  • 5,000$0.4632
  • 10,000$0.44294

Quote It

Technical Details

  • Series:MTA-100
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:-
  • Contact Length - Mating:0.295" (7.49mm)



  • Contact Length - Post:0.140" (3.56mm)
  • Overall Contact Length:0.535" (13.59mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC

Related Products


280611-1

CONN HEADER VERT 6POS 3.96MM

280611-1 Datasheet
  • 1: $0.90000
  • 10: $0.78898
  • 100: $0.68055

641991-2

CONN HEADER VERT 7POS 3.96MM

641991-2 Datasheet
  • 1: $0.90000
  • 10: $0.79337
  • 100: $0.69251

1-1318300-1

CONN HEADER VERT 11POS 3.96MM

1-1318300-1 Datasheet
  • 1: $0.91000
  • 11: $0.79875
  • 110: $0.68883

1-1775470-2

CONN HEADER SMD 12POS 2MM

1-1775470-2 Datasheet
  • 1: $1.39000
  • 500: $0.99646
  • 1000: $0.86872

1-1775469-2

CONN HEADER SMD R/A 12POS 2MM

1-1775469-2 Datasheet
  • 1: $1.39000
  • 600: $0.89435
  • 1200: $0.76659

1-440055-4

CONN HEADER R/A 14POS 2MM

1-440055-4 Datasheet
  • 1: $0.93000
  • 10: $0.83015
  • 100: $0.72432

1-292207-8

CONN HEADER VERT 18POS 1.5MM

1-292207-8 Datasheet
  • 1: $0.94000
  • 10: $0.83281
  • 100: $0.72529

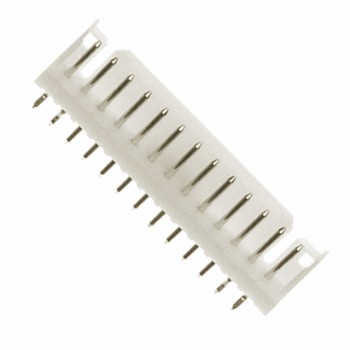

1-292161-3

CONN HEADER VERT 13POS 2MM

1-292161-3 Datasheet
  • 1: $0.93000
  • 10: $0.82441
  • 100: $0.71968

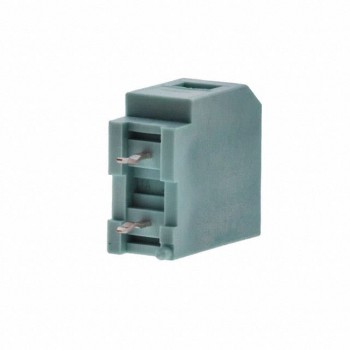

1510482210

CONN HEADER VERT 2POS

1510482210 Datasheet
  • 1: $0.93000
  • 10: $0.86671
  • 100: $0.66482

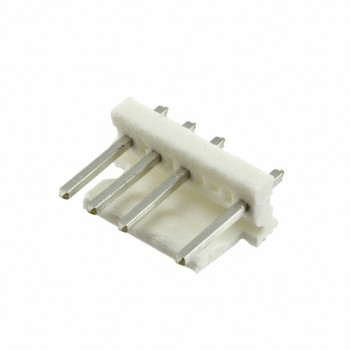

643495-1
