In Stock: 10,531

Can ship immediately

Pricing:
  • 1$0.93
  • 10$0.83015
  • 100$0.72432
  • 500$0.60354
  • 1,000$0.54319
  • 5,000$0.48284
  • 10,000$0.46171

Quote It

Technical Details

  • Series:High Performance Interconnect (HPI)
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:14
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 3 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Press-Fit, Solder
  • Fastening Type:-
  • Contact Length - Mating:0.138" (3.50mm)



  • Contact Length - Post:0.134" (3.40mm)
  • Overall Contact Length:-
  • Insulation Height:0.195" (4.95mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:80.0µin (2.03µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-25°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):3A
  • Voltage Rating:250V

Related Products


1-292207-8

CONN HEADER VERT 18POS 1.5MM

1-292207-8 Datasheet
  • 1: $0.94000
  • 10: $0.83281
  • 100: $0.72529

1-292161-3

CONN HEADER VERT 13POS 2MM

1-292161-3 Datasheet
  • 1: $0.93000
  • 10: $0.82441
  • 100: $0.71968

1510482210

CONN HEADER VERT 2POS

1510482210 Datasheet
  • 1: $0.93000
  • 10: $0.86671
  • 100: $0.66482

643495-1

CONN HEADER VERT 5POS 3.96MM

643495-1 Datasheet
  • 1: $0.94000
  • 10: $0.83229
  • 100: $0.72605

1-1775470-4

CONN HEADER SMD 14POS 2MM

1-1775470-4 Datasheet
  • 1: $1.51000
  • 500: $1.01332
  • 1000: $0.88341

6-1747072-6

CONN HEADER VERT 6POS 2.5MM

6-1747072-6 Datasheet
  • 1: $1.57000
  • 450: $1.22444
  • 900: $1.10781

353352-1

CONN HEADER VERT 13POS 2.5MM

353352-1 Datasheet
  • 1: $0.95000
  • 10: $0.83730
  • 100: $0.73103

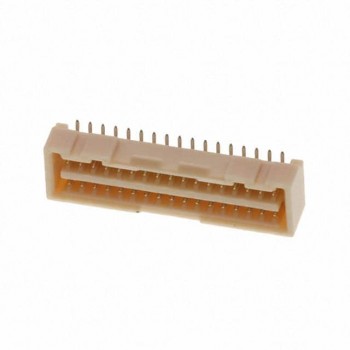

5041873470

CONN HEADER SMD 34POS 1.25MM

5041873470 Datasheet
  • 1: $1.35000
  • 700: $0.87780
  • 1400: $0.75240

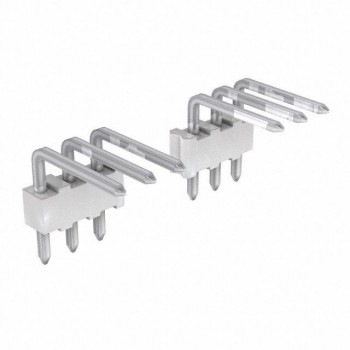

0022052131
