1510482210

Woodhead - Molex
In Stock: 3,243

Can ship immediately

Pricing:
  • 1$0.93
  • 10$0.86671
  • 100$0.66482
  • 500$0.57815
  • 3,456$0.43361
  • 6,912$0.41916
  • 10,368$0.39025

Quote It

Technical Details

  • Series:CP-6.5 151048
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:-
  • Number of Positions:2
  • Number of Rows:2
  • Row Spacing - Mating:0.256" (6.50mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.348" (8.85mm)



  • Contact Length - Post:0.150" (3.81mm)
  • Overall Contact Length:-
  • Insulation Height:0.630" (16.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:50.0µin (1.27µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:Board Guide
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:-
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


643495-1

CONN HEADER VERT 5POS 3.96MM

643495-1 Datasheet
  • 1: $0.94000
  • 10: $0.83229
  • 100: $0.72605

1-1775470-4

CONN HEADER SMD 14POS 2MM

1-1775470-4 Datasheet
  • 1: $1.51000
  • 500: $1.01332
  • 1000: $0.88341

6-1747072-6

CONN HEADER VERT 6POS 2.5MM

6-1747072-6 Datasheet
  • 1: $1.57000
  • 450: $1.22444
  • 900: $1.10781

353352-1

CONN HEADER VERT 13POS 2.5MM

353352-1 Datasheet
  • 1: $0.95000
  • 10: $0.83730
  • 100: $0.73103

5041873470

CONN HEADER SMD 34POS 1.25MM

5041873470 Datasheet
  • 1: $1.35000
  • 700: $0.87780
  • 1400: $0.75240

0022052131

CONN HEADER R/A 13POS 2.54MM

0022052131 Datasheet
  • 1: $0.96000
  • 10: $0.84300
  • 100: $0.72730

4282-1-0100-14-SP

CONN HEADER VERT 14POS DL 94V-0

  • 1: $0.97000

3210-10-002-12-00

CONN HEADER R/A 10POS 1.27MM

3210-10-002-12-00 Datasheet
  • 1: $0.97000
  • 2340: $0.97000

4282-1-0200-12-SP

CONN HEADER R/A 12POS DUAL 94V-0

  • 1: $0.97000

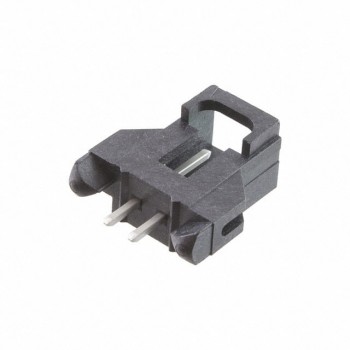

1719720002
