1719720002

Woodhead - Molex
In Stock: 1,950

Can ship immediately

Pricing:
  • 1$0.97
  • 43$0.80372
  • 129$0.73674
  • 516$0.60283
  • 1,032$0.53584
  • 5,031$0.46886
  • 10,019$0.44542

Quote It

Technical Details

  • Series:SL 171972
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.465" (11.80mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Board Guide, Polarizing Key
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:250V

Related Products


292174-7

CONN HEADER SMD 7POS 2MM

292174-7 Datasheet
  • 1: $1.47000
  • 700: $1.04817
  • 1400: $0.91380

643569-3

CONN HEADER VERT 6POS 3.96MM

643569-3 Datasheet
  • 1: $0.98000
  • 10: $0.86427
  • 100: $0.75497

644968-4

CONN HEADER VERT 8POS 3.96MM

644968-4 Datasheet
  • 1: $0.98000
  • 10: $0.86427
  • 100: $0.75497

10131318-0411100LF

CONN HEADER R/A 4POS 4.2MM

  • 1: $0.99000
  • 10: $0.87686
  • 400: $0.70154

1723102103

CONN HEADER R/A 3POS 3.5MM

1723102103 Datasheet
  • 1: $0.98000
  • 10: $0.85800
  • 100: $0.73990

SM30B-SHLS-TF(LF)(SN)

CONN HEADER SMD R/A 30POS 1MM

  • 1: $0.98215
  • 4500: $0.98215
  • 9000: $0.91200

1-440055-5

CONN HEADER R/A 15POS 2MM

1-440055-5 Datasheet
  • 1: $0.99000
  • 10: $0.87466
  • 100: $0.76336

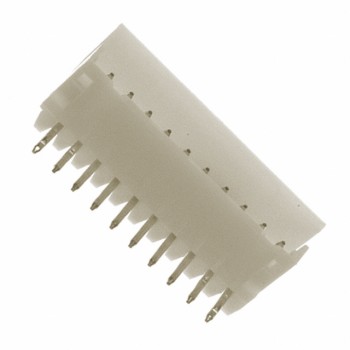

1-292250-0
