0903250026

Woodhead - Molex
In Stock: 1,337

Can ship immediately

Pricing:
  • 1$0.99
  • 10$0.873
  • 100$0.7528
  • 500$0.61596
  • 1,000$0.54752
  • 5,000$0.47908
  • 10,000$0.45513

Quote It

Technical Details

  • Series:Picoflex PF-50 90325
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Blade
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:26
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.252" (6.40mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:118.1µin (3.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1.2A
  • Voltage Rating:250V

Related Products


5-966926-2

CONN HEADER SMD 4POS 2MM

5-966926-2 Datasheet
  • 1: $1.85000
  • 1000: $0.99788
  • 2000: $0.96462

2029104-3

CONN HEADER SMD R/A 3POS 3MM

2029104-3 Datasheet
  • 1: $1.25000
  • 215: $0.95130
  • 430: $0.86479

1-292253-1

CONN HEADER R/A 11POS 2MM

1-292253-1 Datasheet
  • 1: $1.00000
  • 10: $0.87629
  • 100: $0.75639

0532583004

CONN HEADER VERT 4POS 3.5MM

0532583004 Datasheet
  • 1: $1.01000
  • 10: $0.88495
  • 100: $0.76375

826925-5

CONN HEADER VERT 10POS 2.54MM

826925-5 Datasheet
  • 1: $1.00000
  • 10: $0.87742
  • 100: $0.75656

917726-1

CONN HEADER VERT 6POS 2.5MM

917726-1 Datasheet
  • 1: $1.00000
  • 10: $0.89043
  • 100: $0.77691

M20-8750742R

CONN HEADER SMD 14POS 2.54MM

M20-8750742R Datasheet
  • 1: $1.00890
  • 300: $0.95570
  • 600: $0.88025

640455-9

CONN HEADER R/A 9POS 2.54MM

640455-9 Datasheet
  • 1: $1.01000
  • 10: $0.90088
  • 100: $0.78600

1-440055-6

CONN HEADER R/A 16POS 2MM

1-440055-6 Datasheet
  • 1: $1.02000
  • 10: $0.90864
  • 100: $0.79242

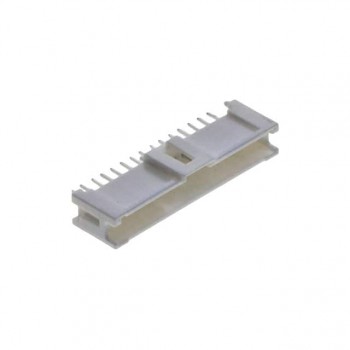

0559321510
