In Stock: 7,399

Can ship immediately

Pricing:
  • 1$0.99
  • 10$0.87037
  • 100$0.75054
  • 500$0.61413
  • 1,000$0.54588
  • 5,000$0.47765
  • 10,000$0.45377

Quote It

Technical Details

  • Series:CT
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Kinked Pin, Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.165" (4.20mm)



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:-
  • Insulation Height:0.228" (5.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:125VAC

Related Products


1-292132-1

CONN HEADER VERT 11POS 2MM

1-292132-1 Datasheet
  • 1: $0.99000
  • 10: $0.87741
  • 100: $0.76560

0903250026

CONN HEADER VERT 26POS 1.27MM

0903250026 Datasheet
  • 1: $0.99000
  • 10: $0.87300
  • 100: $0.75280

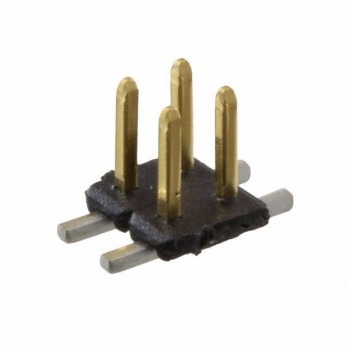

5-966926-2

CONN HEADER SMD 4POS 2MM

5-966926-2 Datasheet
  • 1: $1.85000
  • 1000: $0.99788
  • 2000: $0.96462

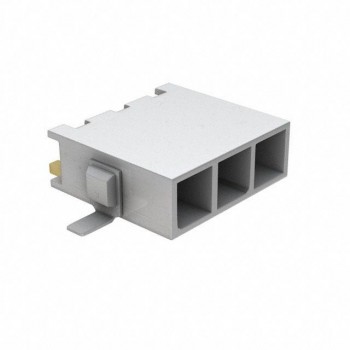

2029104-3

CONN HEADER SMD R/A 3POS 3MM

2029104-3 Datasheet
  • 1: $1.25000
  • 215: $0.95130
  • 430: $0.86479

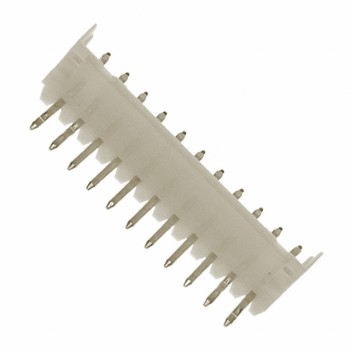

1-292253-1

CONN HEADER R/A 11POS 2MM

1-292253-1 Datasheet
  • 1: $1.00000
  • 10: $0.87629
  • 100: $0.75639

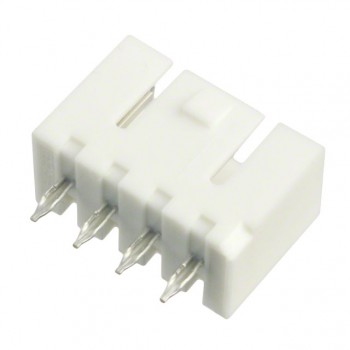

0532583004

CONN HEADER VERT 4POS 3.5MM

0532583004 Datasheet
  • 1: $1.01000
  • 10: $0.88495
  • 100: $0.76375

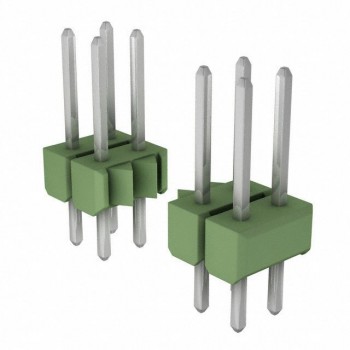

826925-5

CONN HEADER VERT 10POS 2.54MM

826925-5 Datasheet
  • 1: $1.00000
  • 10: $0.87742
  • 100: $0.75656

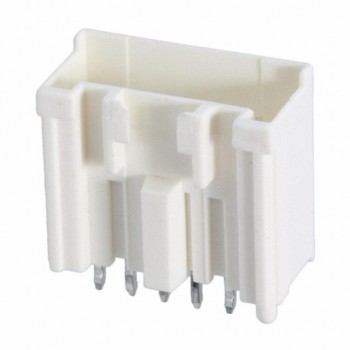

917726-1

CONN HEADER VERT 6POS 2.5MM

917726-1 Datasheet
  • 1: $1.00000
  • 10: $0.89043
  • 100: $0.77691

M20-8750742R

CONN HEADER SMD 14POS 2.54MM

M20-8750742R Datasheet
  • 1: $1.00890
  • 300: $0.95570
  • 600: $0.88025

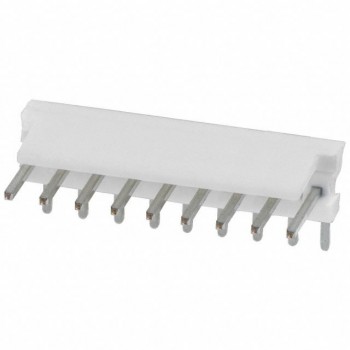

640455-9
