In Stock: 1,433

Can ship immediately

Pricing:
  • 1$0.91
  • 11$0.79875
  • 110$0.68883
  • 506$0.5636
  • 1,001$0.50098
  • 5,005$0.43836
  • 10,010$0.41645

Quote It

Technical Details

  • Series:Economy Power
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:11
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.303" (7.70mm)



  • Contact Length - Post:0.146" (3.70mm)
  • Overall Contact Length:0.567" (14.40mm)
  • Insulation Height:0.118" (3.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:-
  • Operating Temperature:-25°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):7.5A
  • Voltage Rating:250VAC

Related Products


1-1775470-2

CONN HEADER SMD 12POS 2MM

1-1775470-2 Datasheet
  • 1: $1.39000
  • 500: $0.99646
  • 1000: $0.86872

1-1775469-2

CONN HEADER SMD R/A 12POS 2MM

1-1775469-2 Datasheet
  • 1: $1.39000
  • 600: $0.89435
  • 1200: $0.76659

1-440055-4

CONN HEADER R/A 14POS 2MM

1-440055-4 Datasheet
  • 1: $0.93000
  • 10: $0.83015
  • 100: $0.72432

1-292207-8

CONN HEADER VERT 18POS 1.5MM

1-292207-8 Datasheet
  • 1: $0.94000
  • 10: $0.83281
  • 100: $0.72529

1-292161-3

CONN HEADER VERT 13POS 2MM

1-292161-3 Datasheet
  • 1: $0.93000
  • 10: $0.82441
  • 100: $0.71968

1510482210

CONN HEADER VERT 2POS

1510482210 Datasheet
  • 1: $0.93000
  • 10: $0.86671
  • 100: $0.66482

643495-1

CONN HEADER VERT 5POS 3.96MM

643495-1 Datasheet
  • 1: $0.94000
  • 10: $0.83229
  • 100: $0.72605

1-1775470-4

CONN HEADER SMD 14POS 2MM

1-1775470-4 Datasheet
  • 1: $1.51000
  • 500: $1.01332
  • 1000: $0.88341

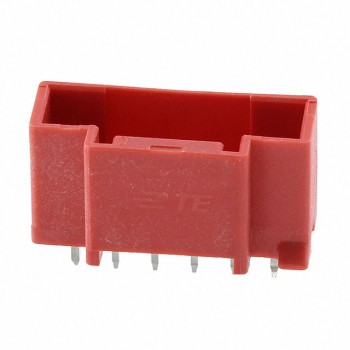

6-1747072-6

CONN HEADER VERT 6POS 2.5MM

6-1747072-6 Datasheet
  • 1: $1.57000
  • 450: $1.22444
  • 900: $1.10781

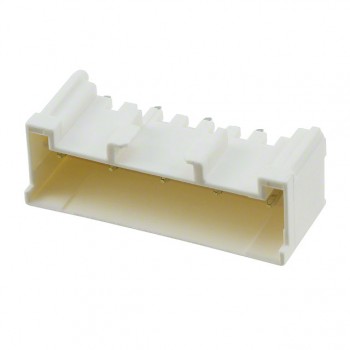

353352-1
