0532901080

Woodhead - Molex
In Stock: 6,126

Can ship immediately

Pricing:
  • 1$0.83

Quote It

Technical Details

  • Series:53290
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 3 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.130" (3.30mm)



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:0.335" (8.51mm)
  • Insulation Height:0.236" (6.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0907793003

CONN HEADER VERT 8POS 1.27MM

0907793003 Datasheet
  • 1: $0.82000
  • 10: $0.71883
  • 100: $0.61990

178496-1

CONN HEADER R/A 3POS 3.96MM

178496-1 Datasheet
  • 1: $0.82000
  • 10: $0.72300
  • 25: $0.68040

3020-16-0300-00-TR

CONN HEADER SMD 16POS 2.54MM

  • 1: $1.19000

0878321016

CONN HEADER SMD 10POS 2MM

0878321016 Datasheet
  • 1: $0.82000
  • 42: $0.67714
  • 126: $0.62063

0874371343

CONN HEADER SMD 13POS 1.5MM

  • 1: $0.95000

917894-1

CONN HEADER VERT 2POS 2.5MM

917894-1 Datasheet
  • 1: $1.37000
  • 900: $0.79870
  • 1800: $0.68460

5055750771

CONN HEADER SMD 7POS 2MM

5055750771 Datasheet
  • 1: $1.20000
  • 600: $0.74628
  • 1200: $0.66336

1734829-7

CONN HEADER R/A 7POS 1.25MM

1734829-7 Datasheet
  • 1: $0.83000
  • 58: $0.65456
  • 116: $0.62604

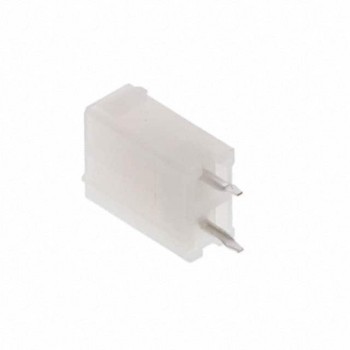

0460150206

CONN HEADER VERT 2POS

0460150206 Datasheet
  • 1: $0.83000
  • 10: $0.72600
  • 100: $0.62610

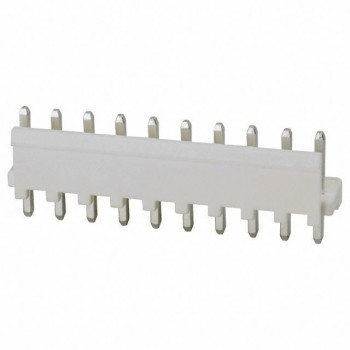

1-1318300-0
